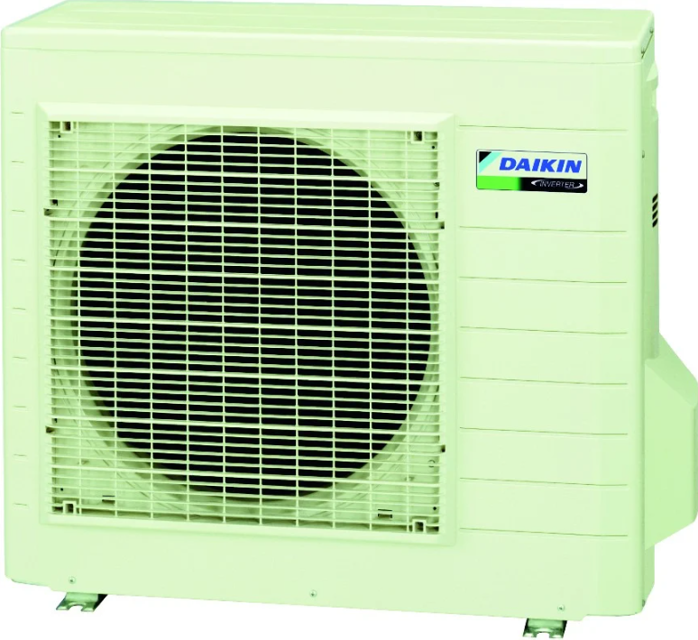

Daikin Outdoor Heat Pump RXS60E3V1B
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Hall IC Check
Check the connector connection
Output voltage between pins 1 and 3
Number of pulses generated between pins 2 and 3 when the fan motor is operating
If NG in step 1, what is the defect?
If NG in step 2, what is the defect?
If OK in both steps 1 and 2, what is the action?
Sign off on the Hall IC Check
Thermistor Resistance Check
Warning: Disconnect the connectors of the thermistors from the PCB before proceeding
Thermistors disconnected from the PCB?
Enter the resistance of each thermistor
Select the model of the thermistor
For models directly mounted on the PCB, disconnect the connector for the PCB and measure.
Connector for the PCB disconnected?
Enter the resistance of the thermistor
Sign off on the thermistor resistance check
PCB Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Preparation: Remove the electrical box according to the “Removal of Electrical Box”.
Disconnect the connectors from the service monitor PCB [S52] [S102].
Detach the 4 clamps with pliers.
Remove the screws of the terminal board and the earth wire.
Unfasten the hook on the right.
Open the terminal board.
Disconnect the harnesses.
Disconnect the 2 connectors for the reactor [HR1] [HR2].
Outdoor Fan / Fan Motor Removal
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
1. Remove the electrical box cover.
Preparation
Remove the top panel and the front panel according to the “Removal of Outer Panels”.
This procedure is not necessary to remove the outdoor fan only.
1 Remove the screw of the shield plate.
2 Unfasten the 2 hooksand remove the shield plate.
3 Unfasten the 4 hooks of the electrical box cover and remove it.
2. Remove the fan motor.
Electronic Expansion Valve Check
EV connector correctly connected to the PCB
EV generates latching sound when power is turned off and on
Continuity present when connector is disconnected and checked with a tester
Check continuity between the following pins
EV coil is not faulty if there is continuity between the pins
Outdoor unit PCB is not faulty if continuity is confirmed
Note: The latching sound varies depending on the valve type
Sign off on the electronic expansion valve check
Access the parts list for your equipment in MaintainX.
Inverter Checker
1225477
Silicon Grease
1172698
Inverter Checker
1225477
Silicon Grease
1172698
Inverter Checker
1225477
Silicon Grease
1172698
