The Daikin Outdoor Heat Pump RXS50E2V1B is a high-efficiency HVAC solution designed for residential and commercial applications. This model provides reliable heating and cooling performance, ensuring optimal comfort while minimizing energy consumption. Regular maintenance is essential for longevity and efficiency.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Find all the essential guides in one place.
Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more
Pre-built workflows to keep your asset running smoothly.
Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more
Integrate maintenance plans directly into your work orders.
Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more
Access the parts list for your equipment in MaintainX.
Drive Motor
B2 Rollers
Tensioning System
+ 40 more

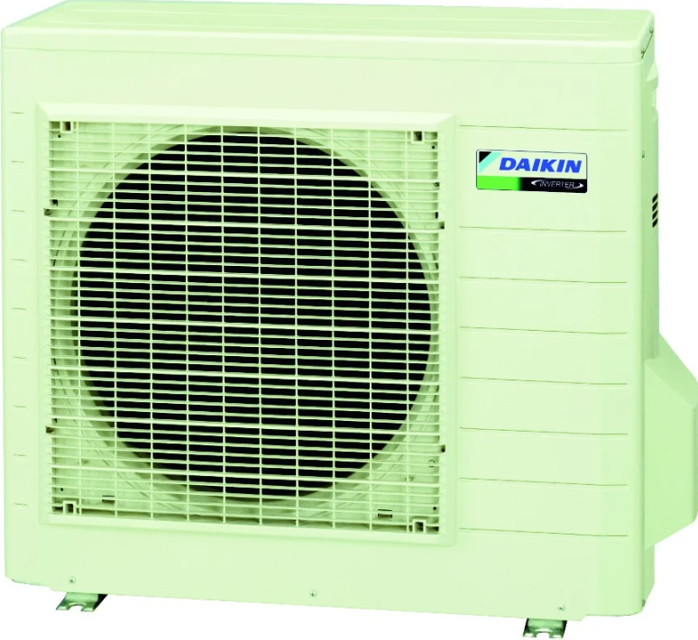

Daikin Outdoor Heat Pump RXS50E2V1B
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Outdoor Fan / Fan Motor Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Preparation: Remove the top panel and the front panel according to the “Removal of Outer Panels”. This procedure is not necessary to remove the outdoor fan only.
Remove the screw of the shield plate.
Unfasten the 2 hooks and remove the shield plate.
Unfasten the 4 hooks of the electrical box cover and remove it.
Disconnect the connector for the fan motor [S70].
Release the fan motor lead wire from the 7 hooks.
Remove the washer fitted nut of the outdoor fan. Note: The screw has reverse winding. Nut size: M6. When reassembling, align mark of the outdoor fan with D-cut section of the motor shaft.
Remove the lower 2 screws from the fan motor first. Note: Be sure to remove the lower screws first. If the upper screws are removed first, the fan motor, the center of gravity of which is toward the front, may tilt down or fall, getting you injured.
Power Module Check
Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before proceeding.
Voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V?
Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.
Compressor harness connector successfully disconnected?
Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.
Enter the resistance measurement
Is the resistance measurement within the acceptable range?
Sign off on the power module check
Outer Panel Removal
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
1. Remove the panels.
1 Remove the 4 screws and lift the top panel.
Take care not to cut your finger by the fins of the outdoor heat exchanger.
2 Remove the 4 screws and remove the discharge grille.
Slide the discharge grille upwards and remove it.
The discharge grille has 4 hooks.
3 Remove the 6 screws of the front panel.
4 Push the front panel and lift the shield plate to unfasten the hooks.
Compressor Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Remove the terminal cover.
Disconnect the lead wires of the compressor.
Release the clamp with pliers to detach the compressor lead wires.
Remove the putty.
Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.
Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)
Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.
Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.
Sound Blanket / Thermistor Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Remove the sound blanket (back)
Remove the sound blanket (outer)
Warning: Since the piping ports are torn easily, remove the sound blanket carefully.
Remove the sound blanket (top upper)
Remove the sound blanket (top lower)
Remove the sound blanket (inner)
Release the discharge pipe thermistor
Warning: Be careful not to lose the clip for the thermistor.
Access the parts list for your equipment in MaintainX.
Inverter Checker
1225477
Silicon Grease
1172698
Inverter Checker
1225477
Silicon Grease
1172698
Inverter Checker
1225477
Silicon Grease
1172698
