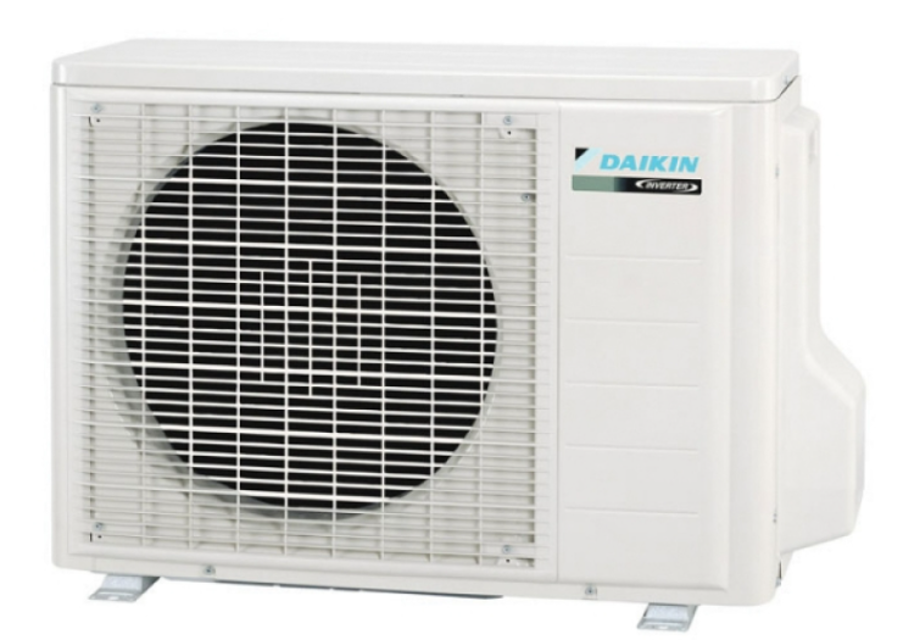

Daikin Outdoor Heat Pump RXS25KVMA

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXS25KVMA

Integrate maintenance plans directly into your work orders in MaintainX.

Sound Blankets Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Sound blanket (top) removed carefully to avoid tearing the piping ports

String untied and sound blanket (outer) opened

Sound blanket (outer) lifted and removed

Sound blanket (inner) pulled out

Sound blanket (bottom) pulled out

Sign off on the sound blankets removal

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Main PCB and the forced operation button PCB removed

Screw on the terminal board removed

2 earth wires released

Forced operation button PCB pulled out

Connector [S110] disconnected

Selective connector for standby electricity saving disconnected and relay connector pulled out

Clamp cut

Harness released

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Disconnect the connector for the four way valve coil [S80]

Preparation: Remove the outer panels and disconnect the connector for the fan motor according to the “Removal of Outer Panels / Fan Motor”.

Disconnect the connector for the electronic expansion valve coil [S20]

Disconnect the 2 connectors for the reactor

When reassembling, you can connect the 2 harnesses in either way regardless of the color.

Disconnect the relay connector for the compressor

Disconnect the connector for the overload protector [S40]

When reassembling, connect the connectors in the following order: (1) [S40] (2) relay connector for compressor (3) reactor (4) [S20] (5) [S80] (6) [S70]

Run this procedure

Reactor / Partition Plate Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the reactor.

Preparation

Remove the outer panels according to the “Removal of Outer Panels / Fan Motor”.

Remove the electrical box according to the “Removal of Electrical Box”.

1 Remove the screw and remove the reactor.

2. Remove the partition plate.

1 Remove the 2 screws.

2 The partition plate has

Run this procedure

Compressor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 2 nuts of the compressor.

Warning: Be careful not to get yourself burnt with pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Cautions for restoration

Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.
