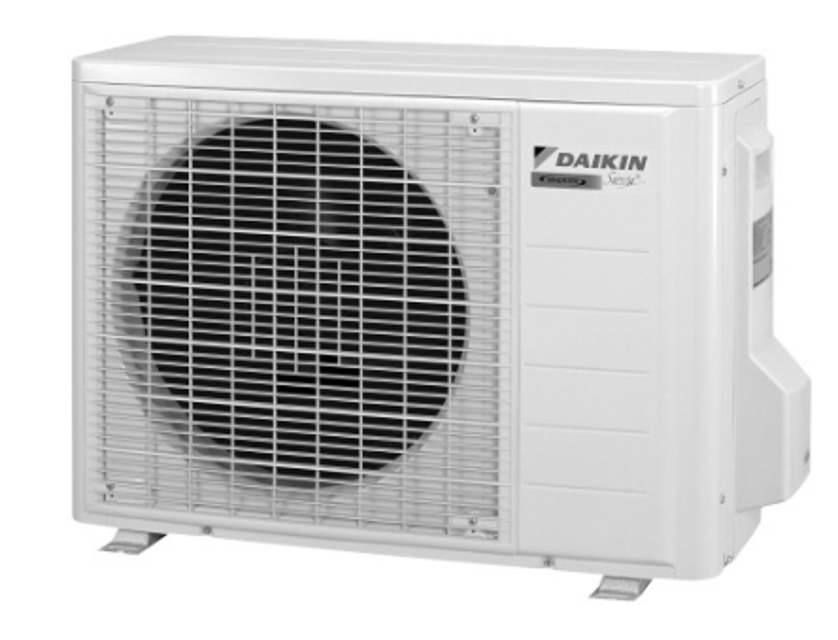

Daikin Outdoor Heat Pump RXS25G2V1B9

Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the outer panels according to the “Removal of Outer Panels / Fan Motor”.

Remove the electrical box according to the “Removal of Electrical Box”.

1 Remove the screw and remove the reactor.

2 The partition plate has a hook on the lower side. Lift and pull the partition plate to remove.

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 2 nuts of the compressor.

Warning: Be careful not to get yourself burnt with pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.

Disconnect the brazed part where is easy to disconnect and restore.

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor

Refer to the table and graph for normal temperature and resistance relationship

Sign off on the thermistor resistance check

Check the connection of connector

Check the motor power supply voltage output (pins 4 - 7)

Check the motor control voltage (pins 4 - 3)

Check the rotation command voltage (pins 4 - 2)

Check the rotation pulse (pins 4 - 1)

Sign off on the fan motor connector output check

RK(X)S20-50G2V1B, ARXS20-50G2V1B

Control voltage between the pins 3 - 4

Rotation command voltage between the pins 2 - 4

2 pulses (0 ~ 15 VDC) are output at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

RK(X)S20-35G2V1B9, ARXS20-35G3V1B

Voltage between the pins 10 - 11

Hall IC generates the rotation pulse (0 ~ 15 VDC) 4 times between the pins 10 - 12, 10 - 13, when the fan motor is manually rotated once

Sign off on the rotation pulse check
