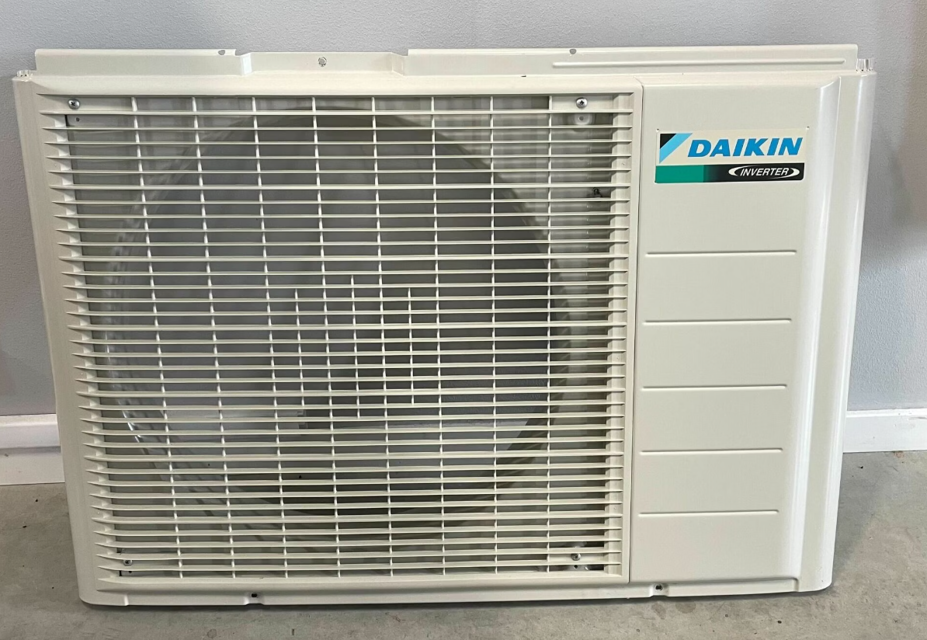

Daikin Outdoor Heat Pump RXG25J2V1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RXG25J2V1B

Integrate maintenance plans directly into your work orders in MaintainX.

Sound Blankets Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (top). Since the piping ports are torn easily, remove the sound blankets carefully.

Untie the string and open the sound blanket (outer).

Lift and remove the sound blanket (outer).

Pull out the sound blanket (inner).

Pull out the sound blanket (bottom).

Sign off on the sound blankets removal

Run this procedure

Reactor / Partition Plate Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the reactor.

Preparation

Remove the outer panels according to the “Removal of Outer Panels / Fan Motor”.

Remove the electrical box according to the “Removal of Electrical Box”.

1 Remove the screw and remove the reactor.

2. Remove the partition plate.

1 Remove the 2 screws.

2 The partition plate has

Run this procedure

Outer Panels / Fan Motor Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Appearance features

Take care not to cut your finger by the fins of the outdoor heat exchanger.

2. Remove the panels.

The stop valve cover is united with the shield plate.

When reassembling, make sure to fit the 5 hooks.

1 Remove the screw of the stop valve cover. Pull the stop valve cover downward and remove it.

2 Remove the 3 screws and lift the top panel.

Some models have only 2 screws.

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Preparation: Remove the outer panels and disconnect the connector for the fan motor according to the “Removal of Outer Panels / Fan Motor”.

Disconnect the connector for the four way valve coil [S80]

Disconnect the connector for the electronic expansion valve coil [S20]

Disconnect the 2 connectors for the reactor

When reassembling, you can connect the 2 harnesses in either way regardless of the color.

Disconnect the relay connector for the compressor

Disconnect the connector for the overload protector [S40]

When reassembling, connect the connectors in the following order: (1) [S40] (2) relay connector for compressor (3) reactor (4) [S20] (5) [S80] (6) [S70]

Run this procedure

PCB Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Main PCB and the forced operation button PCB removed

Screw on the terminal board removed

2 earth wires released

Forced operation button PCB pulled out

Connector [S110] disconnected

Selective connector for standby electricity saving disconnected and relay connector pulled out

Clamp cut

Harness released
