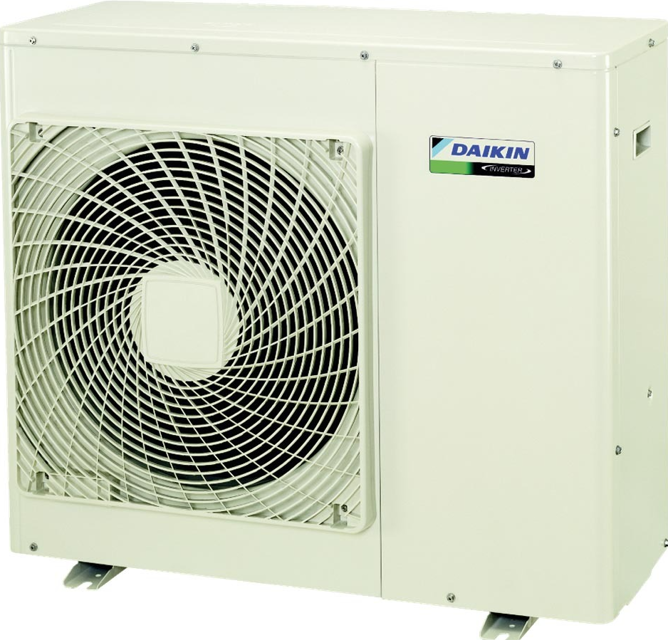

Daikin Outdoor Heat Pump RX71GV1B

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Heat Pump RX71GV1B
Daikin Outdoor Heat Pump RX71GV1B

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Outdoor Heat Pump RX71GV1B

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Heat Pump RX71GV1B

Daikin Outdoor Heat Pump RX71GV1B

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Heat Pump Model RX71GV1B

Integrate maintenance plans directly into your work orders in MaintainX.

Rotation Pulse Check

Check mark

Check No.16: Make sure that the voltage of 320 is applied.

Check mark

1. Set operation off and power off. Disconnect the connector S70.

Check mark

2. Check that the voltage between the pins 4 - 7 is 320 VDC.

Check mark

3. Check that the control voltage between the pins 3 - 4 is 15 VDC.

Check mark

4. Check that the rotation command voltage between the pins 2 - 4 is 0 ~ 6.5 VDC.

Check mark

5. Keep operation off and power off. Connect the connector S70.

Check mark

6. Check whether 4 pulses (0 ~ 15 VDC) are input at the pins 1 - 4 when the fan motor is rotated 1 turn by hand.

Check mark

When the fuse is melted, check the outdoor fan motor for proper function.

Check mark

If NG in step 2 → Defective PCB → Replace the outdoor unit PCB (main PCB).

Run this procedureArrow right

Capacitor Voltage Check

Check mark

Warning: This check requires trained personnel with PPE!

Check mark

Before this check, be sure to check the main circuit for short circuit.

Check mark

Circuit breaker still on?

Check mark

With the circuit breaker still on, measure the voltage according to the drawing of the model in question. Be careful never to touch any live parts.

Check mark

Voltage between P (+) and N (–)

Check mark

Is the voltage 50 V or less?

Check mark

The surface of the test points (P, N) may be covered with the coating. Be sure to make firm contact between the multimeter probes and the test points.

Check mark

Sign off on the capacitor voltage check

Run this procedureArrow right

Indoor Fan Motor Connector Output Check

Check mark

Check the connection of connector

Check mark

Check the motor power supply voltage output (pins 4 - 7)

Check mark

Check the motor control voltage (pins 4 - 3)

Check mark

Check the rotation command voltage (pins 4 - 2)

Check mark

Check the rotation pulse (pins 4 - 1)

Check mark

Sign off on the connector output check

Run this procedureArrow right

Power Supply Waveforms Check

Check mark

Check No.11: Power Supply Waveforms Check

Check mark

Upload a photo of the power supply waveform between No. 1 and No. 2 on the terminal board

Check mark

Is the power supply waveform a sine wave (Refer to Fig.1)?

Check mark

Is there waveform disturbance near the zero-cross (Refer to sections circled in Fig.2)?

Check mark

Sign off on the power supply waveforms check

Run this procedureArrow right

Main Circuit Short Check

Check mark

Warning: This check is for RX50/60G2V1B9, RX50/60G3V1B, RX60G4V1B only

Check mark

Voltage between (+) and (–) of the diode bridge (DB1)

Check mark

Ensure the voltage is about 0 V before proceeding

Check mark

Resistance between the pins of the DB1

Check mark

Is the resistance ∞ or less than 1 kΩ?

Check mark

If yes, a short circuit occurs on the main circuit.

Check mark

Sign off on the main circuit short check
