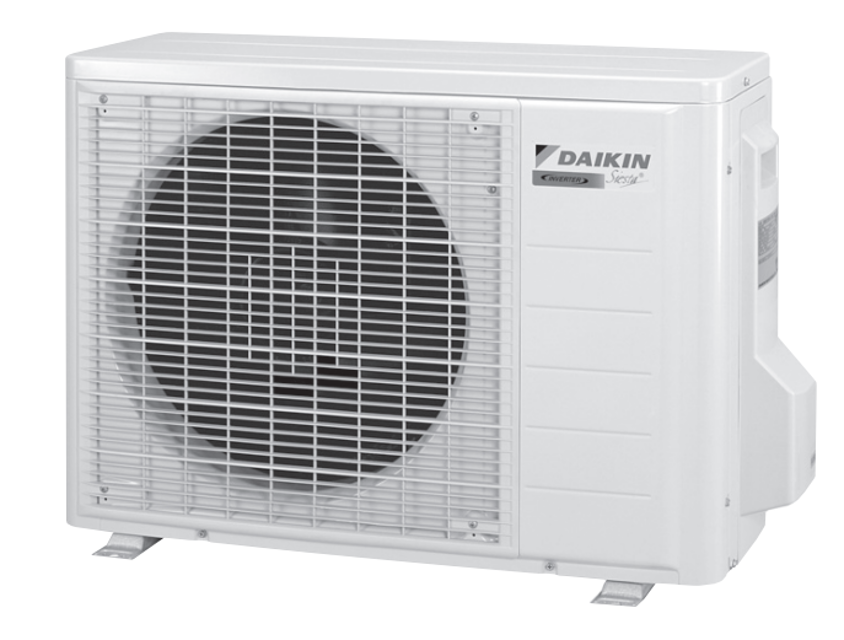

Daikin Outdoor Heat Pump ARXS50G2V1B

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (back)

Remove the sound blanket (outer)

Warning: Since the piping ports are torn easily, remove the sound blanket carefully.

Remove the sound blanket (top upper)

Remove the sound blanket (top lower)

Remove the sound blanket (inner)

Release the discharge pipe thermistor

Warning: Be careful not to lose the clip for the thermistor.

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw and remove the four way valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.

Note: Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit. When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes may get deformed. Provide a protective sheet or a steel plate so that the brazing flame cannot influence peripheries. Before working, make sure that the refrigerant gas is empty in the circuit. Be sure to apply nitrogen replacement when heating up the brazed part.

Warning: This check requires trained personnel with PPE!

Enter the power supply waveform measurement between No. 1 and No. 2 on the terminal board

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero cross?

Sign off on the power supply waveforms check

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Disconnect the lead wires of the compressor.

Release the clamp with pliers to detach the compressor lead wires.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Check the connection of connector

Check the motor power supply voltage output (pins 4 - 7)

Check the motor control voltage (pins 4 - 3)

Check the rotation command voltage (pins 4 - 2)

Check the rotation pulse (pins 4 - 1)
