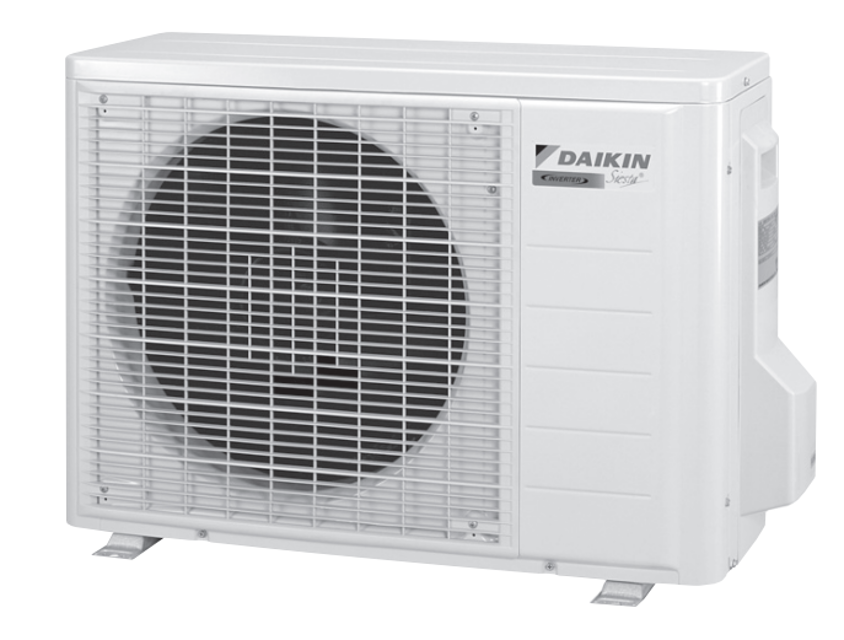

Daikin Outdoor Heat Pump ARXS35G3V1B

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor

Upload a photo of the tester reading

For models with thermistor directly mounted on the PCB, disconnect the connector for the PCB and measure

Thermistor disconnected from the PCB

Measure the resistance of the thermistor

Upload a photo of the tester reading

Sign off on the thermistor resistance check

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the electronic expansion valve coil.

Disconnect the lead wires of the compressor.

Remove the screw and remove the four way valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Warning: Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 2 nuts of the compressor.

Warning: Be careful not to get yourself burnt with pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.

Disconnect the brazed part where is easy to disconnect and restore.

Check the connection of connector

Check the motor power supply voltage output (pins 4 - 7)

Check the motor control voltage (pins 4 - 3)

Check the rotation command voltage (pins 4 - 2)

Check the rotation pulse (pins 4 - 1)

Sign off on the fan motor connector output check

Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.

You can remove the main PCB when you disconnect the lead wires on the terminal board without removing the electrical box.

2 Remove the screw on the terminal board.

3 Release the 2 earth terminals.

4 Pull out the forced operation button PCB. Disconnect the connector [S110] to remove the forced operation button PCB.

Be careful of a sharp protrusion at the back of the forced operation button PCB.

5 Disconnect the relay connector.
