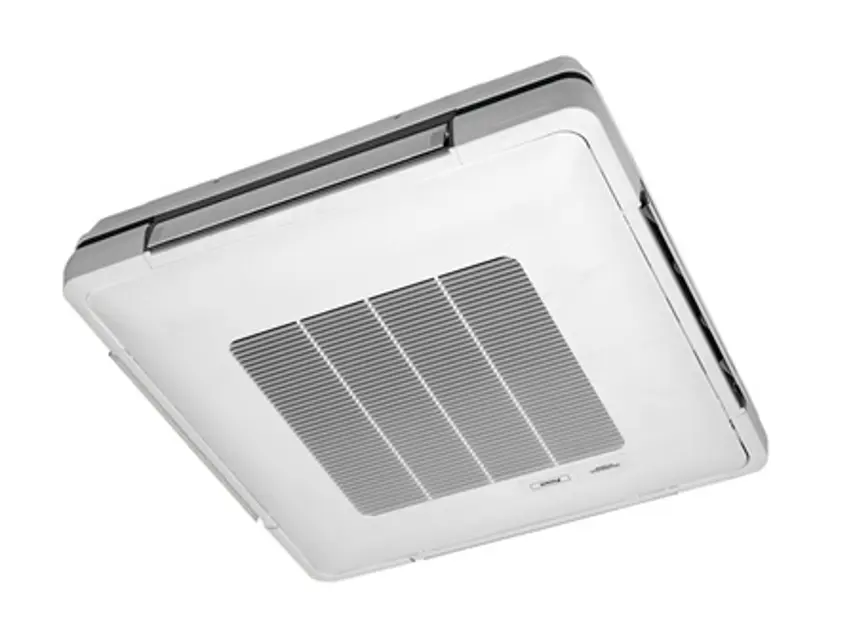

The Daikin Indoor Cooling/Heating Unit FXUQ24PVJU is a versatile HVAC solution designed for efficient climate control in residential and commercial spaces. This unit offers reliable heating and cooling performance, ensuring comfort throughout the year while maintaining energy efficiency.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Indoor Cooling/Heating Unit FXUQ24PVJU

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Daikin Indoor Cooling/Heating Unit FXUQ24PVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Indoor Cooling/Heating Unit Model FXUQ24PVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Superheat Operation Check

Superheating temperature control in cooling is conducted by indoor unit electronic expansion valve

Superheating temperature control in heating is conducted by outdoor unit electronic expansion valve (main)

Judgement criteria of superheat operation:

Suction gas superheated degree

Discharge gas superheated degree

Is the suction gas superheated degree 10°C (50°F) and over?

Is the discharge gas superheated degree 45°C (113°F) and over, except immediately after compressor starts up or is running under drooping control?

Additional notes on the superheat operation check

Sign off on the superheat operation check

Run this procedure

Pressure Check

Warning: This procedure requires trained personnel with PPE!

Compressor PI control in cooling

Low pressure protection control

Hot gas bypass control

Superheated degree control in cooling

Superheated degree control in heating

Enter the low pressure reading

Enter the high pressure reading

Sign off on the pressure check

Run this procedure

Heat Recovery System Maintenance

Check for High Pressure in cooling, is the outdoor unit electronic expansion valve (main) fully open?

Check for High Pressure in heating, is the indoor unit electronic expansion valve used for “subcooled degree control”?

Check Thermistor

Check Pressure Sensor

Check for broken wire of the relay wire

Procedure for checking outdoor-outdoor unit transmission wiring for broken wires: Is there continuity between the transmission wiring terminal blocks F1 and F2 of the central remote controller?

Procedure for checking indoor-outdoor unit transmission wiring for broken wires: Is there continuity between the transmission wirings F1 and F2 of the 'Indoor Unit a' that is farthest from the 'Outdoor Unit C'?

Check Fan Motor Connector (Power Supply Cable): Is the resistance between phases of U, V, W at the motor side connectors balanced and there is no short circuiting?

Check Fan Motor Connector (Signal Cable): Is the resistance between Vcc and each phase of U, V, W, and GND and each phase at the motor side connectors balanced within the range of ± 20 %?

Run this procedure

Electronic Expansion Valve Coil Check

Remove the connector for electronic expansion valve (X7A) from PCB

Measure the resistance value between White and Yellow pins

No continuity between White and Yellow

Measure the resistance value between White and Orange pins

Resistance value between White and Orange is approx. 300 Ω

Measure the resistance value between White and Red pins

Resistance value between White and Red is approx. 150 Ω

Measure the resistance value between Yellow and Blue pins

Resistance value between Yellow and Blue is approx. 300 Ω

Run this procedure
