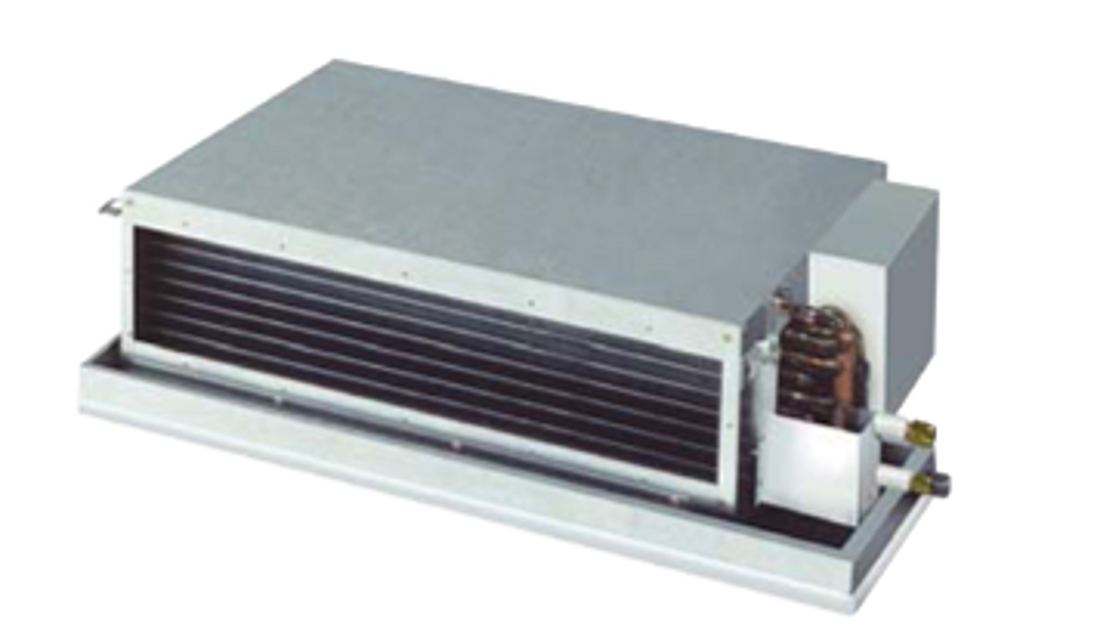

Daikin Ducted Type Indoor Unit FDBT48PUV2S

Warning: Disconnect the thermistor from the PCB before proceeding

Thermistor disconnected from the PCB

Upload a photo of the table with the measured values

Check if the measured values correspond with the values in the table

Sign off on the thermistor check

Warning: Do not touch the energized part (high voltage part) for at least 10 minutes after the power is turned OFF.

Be sure to touch the earth terminal with a hand to release static electricity from the body (to prevent PCB from being damaged).

Residual electric charge of the power transistor (should be DC 50V or less)

Remove the wire connecting the power transistor and the compressor. Remove it from the compressor terminal side. Be careful not to deform. Faston terminal at the end of the relay wire.

Resistance measurement for phase 1

Resistance measurement for phase 2

Resistance measurement for phase 3

Is the resistance value equal to 5 times or more than the other resistance values?

As criteria for judging whether refrigerant is inadequate or not, refer to the following operating conditions.

<Diagnosis of inadequate refrigerant>

(1) As suction superheated degree increases due to refrigerant shortage, the electronic expansion valve tends to open (opens fully) in order to avoid overheat operation.

(2) In response to decreased evaporator capacity caused by refrigerant shortage, capacity is controlled in the inverter in order to maintain low pressure, which results in a decrease in frequency.

(3) Because of (1) and (2) above, the compressor frequency decreases despite a large difference (large load) between temperature set by the remote controller and suction air temperature, resulting that cooling capacity becomes unavailable.

(4) If refrigerant shortage worsens, the electronic expansion valve remains fully open and suction superheated degree further increases. In addition, as compressor frequency drops to the level of the lowest frequency (41 Hz), low pressure cannot be maintained

<Diagnosis of inadequate refrigerant>

As criteria for judging whether refrigerant is excessively charged or not, refer to the following operating conditions.

<Diagnosis of excessive refrigerant charging>

(1) Because high pressure rises due to excessive charging, overload control is carried out and capacity tends to run short.

(2) Considering pressure load, compressor discharge pipe temperature is low.

(3) Subcooling degree of condensate liquid becomes large. Therefore, temperature of blown air passing through subcooling part decreases in heating operation.;

Set operation OFF and power OFF. Disconnect the connector.

Keep operation OFF and power OFF. Connect the connector.

2 pulses (0 and 5 VDC) are output 4 times at the pins 1 - 4 when the fan motor is rotated 1 turn by hand

Select the defective part if any

Sign off on the fan motor pulse check
