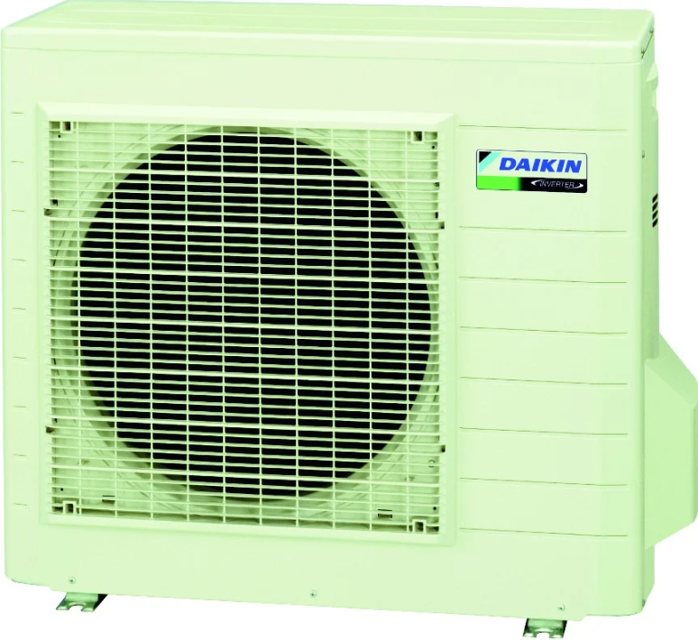

Daikin Cooling-Only Outdoor Unit RKS50G2V1B

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approximately 0 V before proceeding

Voltage between (+) and (–) of the diode bridge (DB1) is approximately 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector successfully disconnected from the outdoor unit PCB

Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.

Enter the resistance measurement between the terminals of the DB1 and the terminals of the compressor

Evaluate the measurement results for a judgment

Sign off on the power module check

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the electronic expansion valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Before working, make sure that the refrigerant gas is empty in the circuit.

Be sure to apply nitrogen replacement when heating up the brazed part.

Heat up the 2 brazed parts of the electronic expansion valve and remove it.

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB?

Measure the resistance of each thermistor using tester

Select the model of the thermistor

For the models in which the thermistor is directly mounted on the PCB, disconnect the connector for the PCB and measure.

Sign off on the thermistor resistance check

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Preparation: Remove the top panel and the front panel according to the “Removal of Outer Panels”.

Remove the 2 screws of the shield plate.

Slide the shield plate upward to unfasten the 1 hook on the bottom left, and then remove the shield plate.

Disconnect the 2 power supply cables and the 1 earth wire.

Remove the 3 screws of the right side panel.

Remove the screw of the electrical box.

Unfasten the hooks and remove the right side panel.

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Preparation: Remove the top panel and the front panel according to the “Removal of Outer Panels”. This procedure is not necessary to remove the outdoor fan only.

Remove the screw of the shield plate.

Unfasten the 2 hooks and remove the shield plate.

Unfasten the 4 hooks of the electrical box cover and remove it.

Disconnect the connector for the fan motor [S70].

Release the fan motor lead wire from the 7 hooks.

Remove the washer fitted nut of the outdoor fan. Note: The screw has reverse winding. Nut size: M6. When reassembling, align mark of the outdoor fan with D-cut section of the motor shaft.

Remove the lower 2 screws from the fan motor first. Note: Be sure to remove the lower screws first. If the upper screws are removed first, the fan motor, the center of gravity of which is toward the front, may tilt down or fall, getting you injured.
