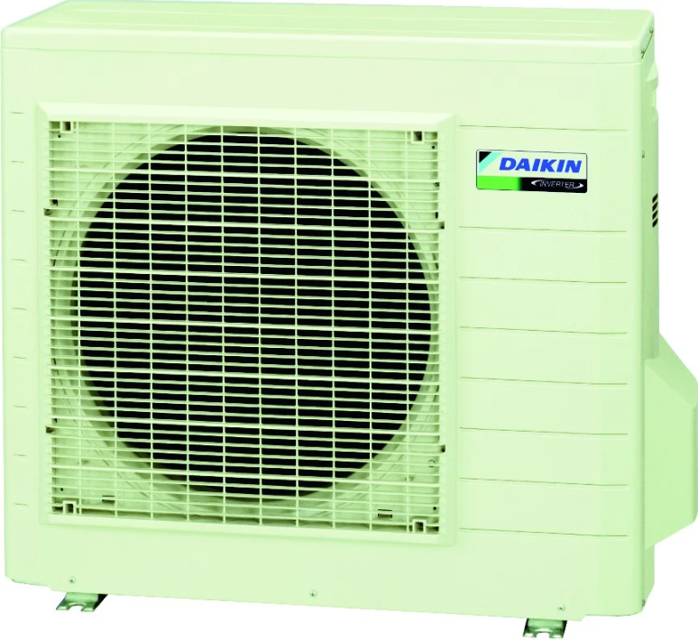

Daikin Cooling-Only Outdoor Unit RKS50F2V1B
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Electronic Expansion Valve Check
Warning: This procedure requires trained personnel with PPE!
EV connector correctly connected to the PCB
Did the EV generate latching sound after power cycle?
If EV does not generate latching sound, proceed to next step
Continuity confirmed using a tester after disconnecting the connector
Check the continuity between the pins
If there is no continuity between the pins, the EV coil is faulty
If the continuity is confirmed, the outdoor unit PCB is faulty
Sign off on the electronic expansion valve check
Electrical Box Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Remove the 2 screws of the shield plate
Preparation: Remove the top panel and the front panel according to the “Removal of Outer Panels”.
Slide the shield plate upward to unfasten the 1 hook on the bottom left, and then remove the shield plate.
Disconnect the 2 power supply cables and the 1 earth wire.
Disconnect the 2 earth wires.
Remove the 3 screws of the right side panel.
Remove the screw of the electrical box.
Unfasten the hooks and remove the right side panel.
Four Way Valve Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Remove the screw and remove the four way valve coil.
Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.
Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)
Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.
Cautions for restoration: 1. Restore the piping by nonoxidation brazing.
2. It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.
Note: Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit.
When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes may get deformed.
Electronic Expansion Valve Removal
Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.
Pull out the electronic expansion valve coil.
Remove the sheets of putty.
Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.
Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)
Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.
Is the refrigerant gas empty in the circuit?
Did you apply nitrogen replacement when heating up the brazed part?
Heat up the 2 brazed parts of the electronic expansion valve and remove it.
Hall IC Check
Check the connector connection
With the power on, operation off, and the connector connected, check the following
Output voltage of about 5 V between pins 1 and 3
Generation of 3 pulses between pins 2 and 3 when the fan motor is operating
If NG in step 1 or 2, choose the defective part
If OK in both steps 1 and 2, replace the PCB
Sign off on the Hall IC Check
