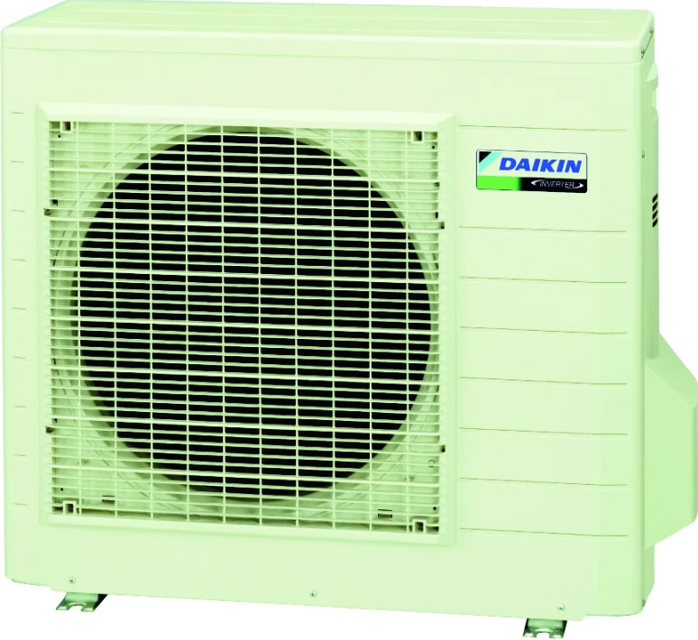

Daikin Cooling-Only Outdoor Unit RKS50E3V1B

EV connector correctly connected to the PCB

EV generates latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a tester

Continuity between pins 1 - 6 and 3 - 6

Continuity between pins 2 - 5 and 4 - 5

If there is no continuity between the pins, the EV coil is faulty

If the continuity is confirmed, the outdoor unit PCB is faulty

Note: The latching sound varies depending on the valve type.

Sign off on the electronic expansion valve check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB?

Measure the resistance of each thermistor using tester

Select the model of the thermistor

For the models in which the thermistor is directly mounted on the PCB, disconnect the connector for the PCB and measure.

Measure the resistance of the thermistor directly mounted on the PCB

Sign off on the thermistor resistance check

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the screw and remove the four way valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Cautions for restoration: Restore the piping by nonoxidation brazing.

It is required to prevent the carbonization of the oil inside the four way valve and the deterioration of the gaskets affected by heat. (Keep below 120°C.) For the sake of this, wrap the four way valve with wet cloth and provide water so that the cloth does not dry.

Note: Do not use a metal saw for cutting pipes by all means because the sawdust comes into the circuit.

When withdrawing the pipes, be careful not to pinch them firmly with pliers. The pipes may get deformed.

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before proceeding

Voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector successfully disconnected

Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.

Enter the resistance measurement

Resistance measurement within acceptable range

Sign off on the power module check

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the sound blanket (back)

Remove the sound blanket (outer)

Warning: Since the piping ports are torn easily, remove the sound blanket carefully.

Remove the sound blanket (top upper)

Remove the sound blanket (top lower)

Remove the sound blanket (inner)

Release the discharge pipe thermistor

Warning: Be careful not to lose the clip for the thermistor.
