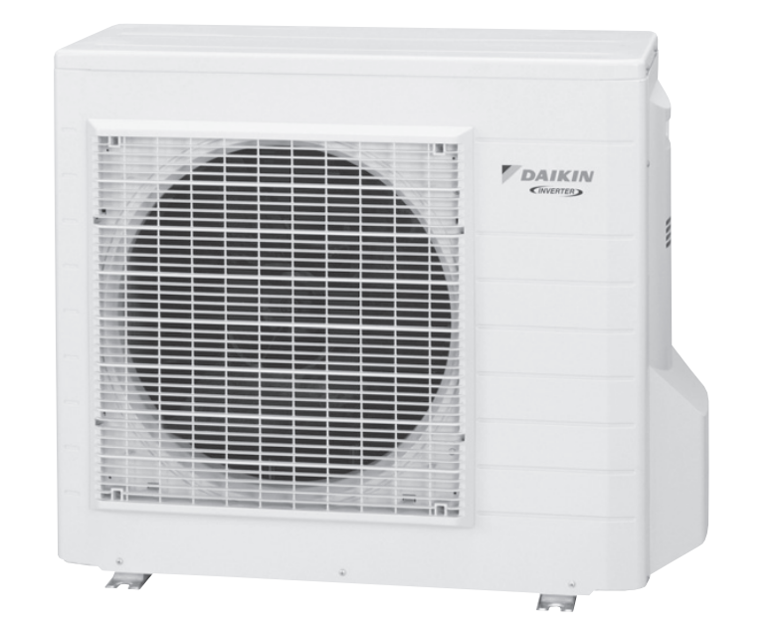

Daikin Cooling-Only Outdoor Unit RKS20G2V1B

Check the connection of connector

Check the motor power supply voltage output (pins 4 - 7)

Check the motor control voltage (pins 4 - 3)

Check the rotation command voltage (pins 4 - 2)

Check the rotation pulse (pins 4 - 1)

Sign off on the fan motor connector output check

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before checking.

Enter the resistance between the pins of the DB1

Is the resistance ∞ or less than 1 kΩ?

Does a short circuit occur on the main circuit?

Sign off on the main circuit short check

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before proceeding.

Voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V?

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector successfully disconnected?

Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.

Enter the resistance measurement

Is the resistance measurement within the acceptable range?

Sign off on the power module check

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Disconnect the 2 connectors for the reactor.

Preparation: Remove the panels and disconnect the connector for the fan motor according to the “Removal of Outer Panels / Fan Motor”.

Disconnect the connector for the compressor [S30].

When reassembling, coil the excessive lead wire and hang the loop on the hook.

Disconnect the connectors for the magnetic relay [S50] and for the thermistors [S90].

Disconnect the connectors for the filter PCB [S10] and for the overload protector [S40].

Disconnect the connectors for the electronic expansion valve coil [S20] and for the four way valve coil [S80].

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Pull out the electronic expansion valve coil.

Disconnect the lead wires of the compressor.

Remove the screw and remove the four way valve coil.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.
