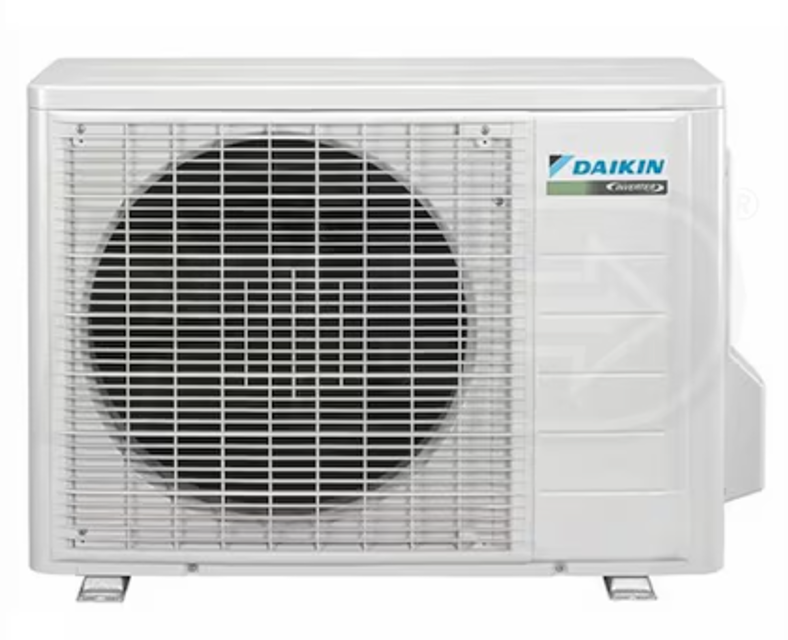

Daikin Cooling-Only Outdoor Unit RKN15KEVJU

Warning: This check requires trained personnel with PPE!

Enter the power supply waveform measurement between No. 1 and No. 2 on the terminal board

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero cross?

Sign off on the power supply waveforms check

1. Check that the voltage between the pins 10 - 11 is 15 VDC.

2. Check if the Hall IC generates the rotation pulse (0 ~ 15 VDC) 4 times between the pins 10 -12, 10 - 13, when the fan motor is manually rotated once.

Make sure that the voltage of 320 ± 30 V is applied.

1. Set operation off and power off. Disconnect the connector S70.

2. Check that the voltage between the pins 4 - 7 is 320 VDC.

3. Check that the control voltage between the pins 3 - 4 is 15 VDC.

4. Check that the rotation command voltage between the pins 2 - 4 is 0 ~ 15 VDC.

Warning: Ensure the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before checking.

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Enter the resistance between the pins of the DB1

Is the resistance 'infinity' or less than 1 kW?

Sign off on the main circuit short check

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Warning: Dangerous: High voltage

A high voltage is applied to all the electric circuits of this product including thermistors.

When the signal receiver catches a signal from the remote controller, the receiving tone sounds and the operation lamp blinks immediately to confirm the signal reception.

When the ON/OFF button is kept pressed for 5 seconds, the forced cooling operation is performed for about 15 minutes.

1 Open the front panel to the position where it stops.

2 Slightly push up the center knob of the air filter and unfasten the hooks.

3 Pull out the air filter downward and remove it.

Warning: Ensure that the voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V before proceeding

Voltage between (+) and (–) of the diode bridge (DB1) is approx. 0 V

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Compressor harness connector successfully disconnected

Measure resistance between the terminals of the DB1 and the terminals of the compressor with a multi-tester.

Enter the resistance measurement

Evaluate the measurement results for a judgment

Sign off on the power module check
