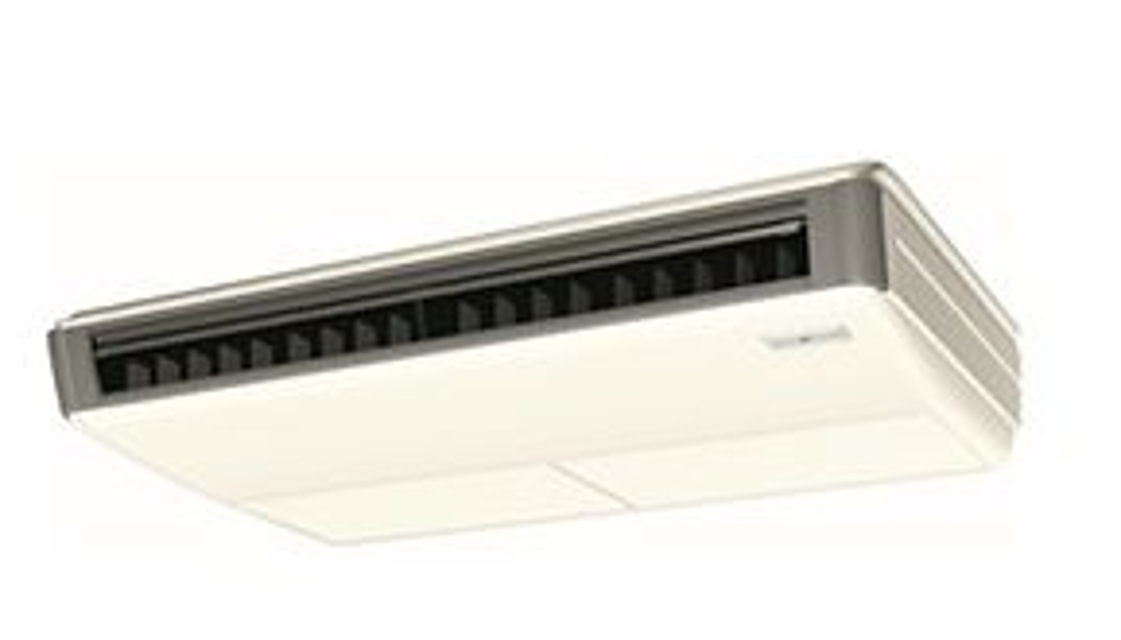

Daikin Ceiling Suspended Type Indoor Unit FHQ125BVV1B

Set operation OFF and power OFF. Disconnect the connector.

Keep operation OFF and power OFF. Connect the connector.

2 pulses (0 and 5 VDC) are output 4 times at the pins 1 - 4 when the fan motor is rotated 1 turn by hand.

Sign off on the fan motor pulse check

Warning: Disconnect the thermistor from the PCB before proceeding

Thermistor disconnected from the PCB

Upload a photo of the table with the measured values

Do the measured values correspond with the values in the table?

Sign off on the thermistor check

Procedure for checking outdoor-outdoor unit transmission wiring for broken wires

Power supply to all equipment turned OFF?

Short circuit between the outdoor-outdoor unit terminal F1 and F2 in the 'Outdoor Unit A'

Continuity checks between the transmission wiring terminal blocks F1 and F2 of the centralized remote controller using a multiple meter

Continuity checks between the transmission wiring terminal blocks F1 and F2 of the unified ON/OFF controller

Continuity checks between the outdoor-outdoor unit terminal of the 'Outdoor Unit E'

Continuity checks between the outdoor-outdoor unit terminal of the 'Outdoor Unit D'

Continuity checks between the outdoor-outdoor unit terminal of the 'Outdoor Unit C'

Procedure for checking indoor-outdoor unit transmission wiring for broken wires (for checking the indoor-outdoor unit transmission wiring of the 'Outdoor Unit C' for broken wires)

Temperature differences must occur before or after the clogged points!

Replace the electronic expansion valve.

Blow a nitrogen gas, and then replace the refrigerant.

Replace the heat exchanger or distributor.

Collapsed pipe Replace the pipe.

Warning: Do not touch the energized part (high voltage part) for at least 10 minutes after the power is turned OFF.

Be sure to touch the earth terminal with a hand to release static electricity from the body (to prevent PCB from being damaged).

Residual electric charge of the power transistor (should be DC 50V or less)

Remove the connector of the outdoor unit fan motor.

Remove the wire connecting the power transistor and the compressor. Remove it from the compressor terminal side.

During this work, be careful not to deform. Faston terminal at the end of the relay wire.

Resistance measurement using an analog tester

Fill in the blanks in the following table
