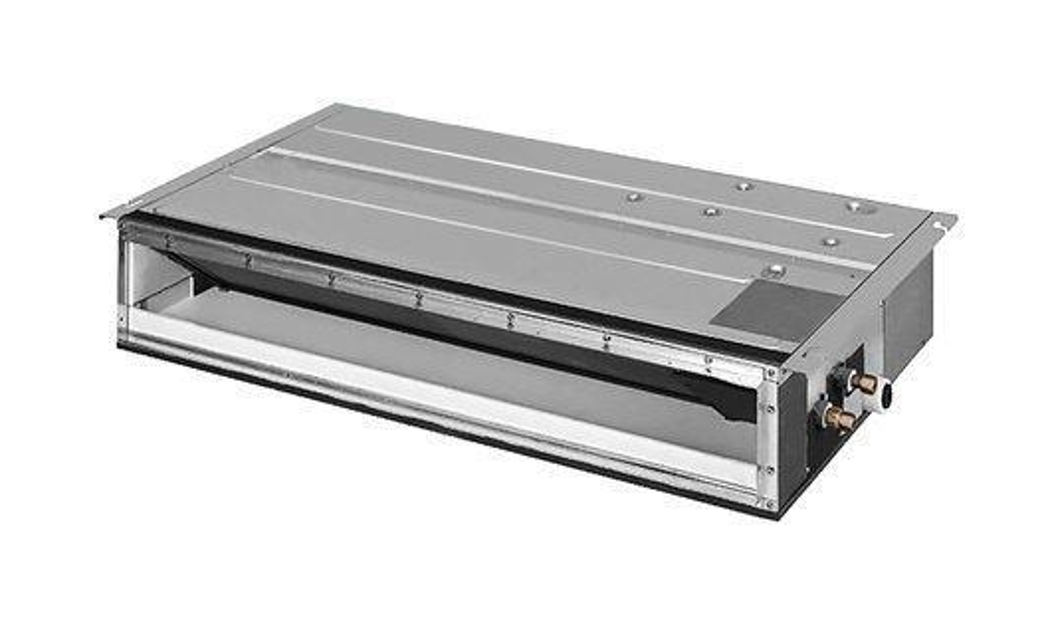

Daikin Ceiling-Duct Inverter Unit FDKS60CVMB

Create an account to install this asset package.

Maintenance Plans for Daikin Ceiling-Duct Inverter Unit Model FDKS60CVMB

Integrate maintenance plans directly into your work orders in MaintainX.

Outdoor Fan / Fan Motor Removal

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

1. Remove the electrical box cover.

Preparation

Remove the top panel and the front panel according to the “Removal of Outer Panels”.

This procedure is not necessary to remove the outdoor fan only.

1 Remove the screw of the shield plate.

2 Unfasten the 2 hooksand remove the shield plate.

3 Unfasten the 4 hooks of the electrical box cover and remove it.

2. Remove the fan motor.

Run this procedure

Electronic Expansion Valve Check

EV connector correctly connected to the PCB

EV generates latching sound when power is turned off and on

Continuity confirmed when connector is disconnected and checked with a tester

Check the continuity between the pins

EV coil is not faulty if there is continuity between the pins

Outdoor unit PCB is not faulty if continuity is confirmed

Note: The latching sound varies depending on the valve type.

Sign off on the electronic expansion valve check

Run this procedure

Electrical Box Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the 2 screws of the shield plate.

Preparation: Remove the top panel and the front panel according to the “Removal of Outer Panels”.

Slide the shield plate upward to unfasten the 1 hook on the bottom left, and then remove the shield plate.

Disconnect the 2 power supply cables and the 1 earth wire.

Disconnect the 2 earth wires.

Remove the 3 screws of the right side panel.

Remove the screw of the electrical box.

Unfasten the hooks and remove the right side panel.

Run this procedure

Thermistor Resistance Check

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB?

Enter the resistance of each thermistor

Select the model of the thermistor

For models directly mounted on the PCB, disconnect the connector for the PCB and measure.

Sign off on the thermistor resistance check

Run this procedure

Compressor Removal

Warning: Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work.

Remove the terminal cover.

Disconnect the lead wires of the compressor.

Release the clamp with pliers to detach the compressor lead wires.

Remove the putty.

Warning: Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine.

Warning: If the refrigerant gas leaks during work, ventilate the room. (If the refrigerant gas is exposed to flames, toxic gas may be generated.)

Warning: Since it may happen that the refrigerant oil in the compressor catches fire, prepare wet cloth so as to extinguish fire immediately.

Caution: From the viewpoint of global environment protection, do not discharge the refrigerant gas in the atmosphere. Make sure to collect all the refrigerant gas.

Run this procedure
