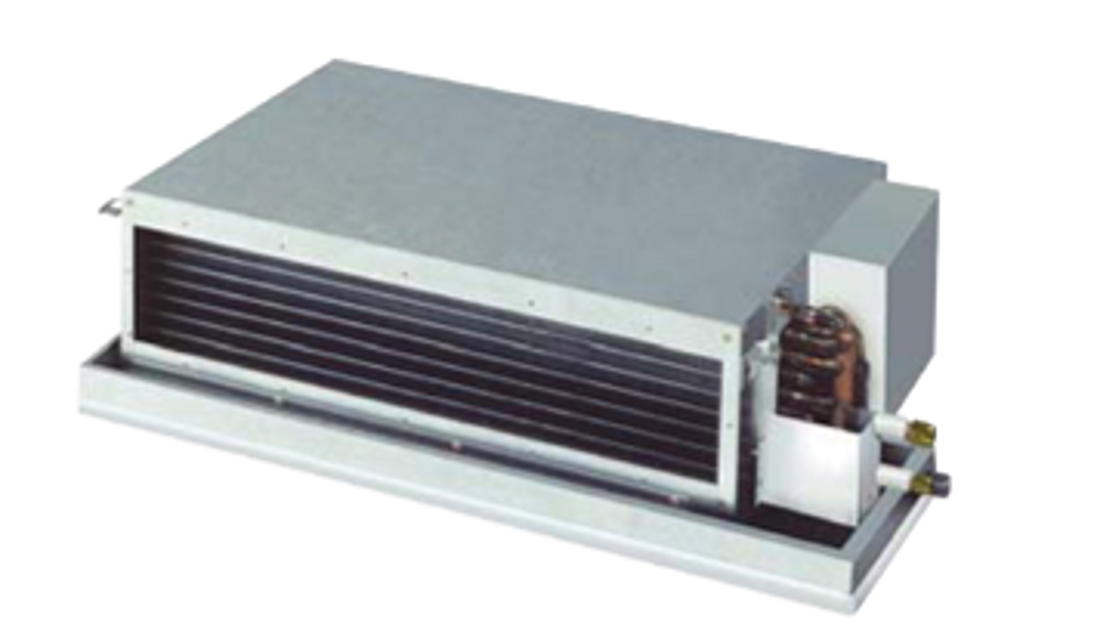

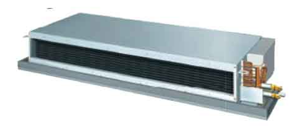

Daikin Cassette Type Indoor Unit FDBT30NUV2S

Warning: Do not touch the energized part (high voltage part) for at least 10 minutes after the power is turned OFF.

Be sure to touch the earth terminal with a hand to release static electricity from the body (to prevent PCB from being damaged).

Residual electric charge of the power transistor (should be DC 50V or less)

Remove the wire connecting the power transistor and the compressor. Remove it from the compressor terminal side. During this work, be careful not to deform. Faston terminal at the end of the relay wire.

Is the resistance value equal to 5 times or more than the other resistance values?

Temperature differences must occur before or after the clogged points!

Replace the electronic expansion valve.

Blow a nitrogen gas, and then replace the refrigerant.

Replace the heat exchanger or distributor.

Collapsed pipe Replace the pipe.

Warning: Ensure the machine is powered off before starting the procedure

Thermistor disconnected from the PCB

Temperature reading from the thermistor

Resistor value from the thermistor

Upload a photo of the measured values

Check if the measured values correspond with the values in the table

Sign off on the thermistor check

Check for Fan Motor Connector (Signal Line)

(2) With the fan motor connector disconnected, measure the resistance between each pin, then make sure that the resistance is more than the value mentioned in the following table.

(2) With the fan motor connector disconnected, measure the resistance between each pin, then make sure that the resistance is balanced in ±30%.

Check for Fan Motor Connector (Power Supply Line)

With the relay connector disconnected, measure the resistance between UVW phases of the connector (3 cores) at the motor side, then make sure that the resistance between each phase is balanced and not short-circuited.;

Procedure for checking outdoor-outdoor unit transmission wiring for broken wires

Turn OFF the power supply to all equipment

Short circuit between the outdoor-outdoor unit terminal F1 and F2 in the 'Outdoor Unit A'

Conduct continuity checks between the transmission wiring terminal blocks F1 and F2 of the centralized remote controller using a multiple meter

Is there continuity between the said terminal blocks?

If there is no continuity, the transmission wiring may have broken wires.

Conduct continuity checks between the transmission wiring terminal blocks F1 and F2 of the unified ON/OFF controller

Conduct continuity checks between the outdoor-outdoor unit terminal of the 'Outdoor Unit E'

Conduct continuity checks between the outdoor-outdoor unit terminal of the 'Outdoor Unit D'
