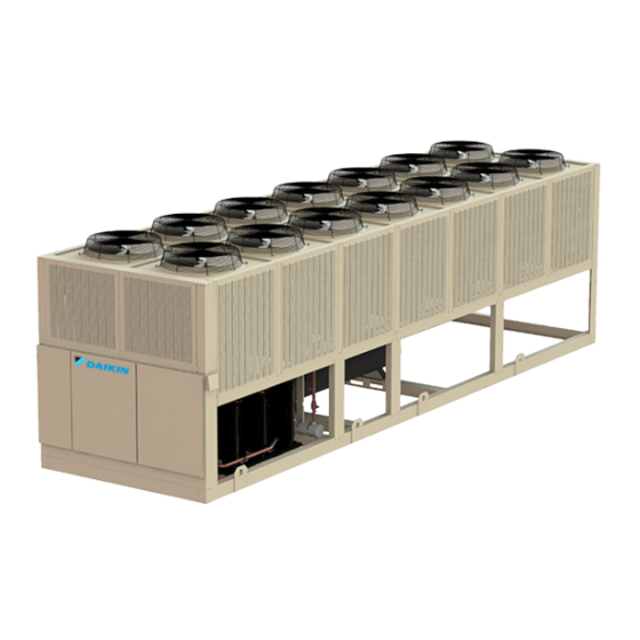

Daikin Air-Cooled Scroll Compressor Chiller AGZ161EDSEMNN00

LOCKOUT/TAGOUT all power sources prior to starting, pressurizing, de-pressuring, or powering down the Chiller

Disconnect electrical power before servicing the equipment

Failure to follow this warning exactly can result in serious injury or death

The panel is always energized even if the system switch is off. If it is necessary to de-energize the complete panel, including crankcase heaters, pull the main unit disconnect

More than one disconnect may be required to de-energize the unit. Failure to do so may result in serious injury or death

Warranty may be affected if wiring is not in accordance with specifications

A blown fuse or tripped protector may indicate a short, ground fault, or overload

NOTE! Be sure fan motors are electrically locked out

Check fan blades for tightness on shaft

Check fans for loose rivets and cracks

NOTE! Annual (or spring start-up) operations includes all weekly and monthly operations

Sign off on the condenser check

Warning: This maintenance check requires trained personnel with PPE!

Is the unit operating at ambient temperatures of 105°F (40.6°C) and above?

If the unit is not operating at the required temperature, report the issues to the maintenance team and stop the procedure

Is the fan VFD (low ambient option) included in the unit?

Enter the current ambient temperature

Is the exhaust fan operational?

Sign off on the High Ambient Control Panel Maintenance

Inspect thermal insulation for integrity

NOTE! Annual (or spring start-up) operations includes all weekly and monthly operations;

NOTE! Log readings can be taken daily for a higher level of unit observation

Sign off on the weekly inspection
