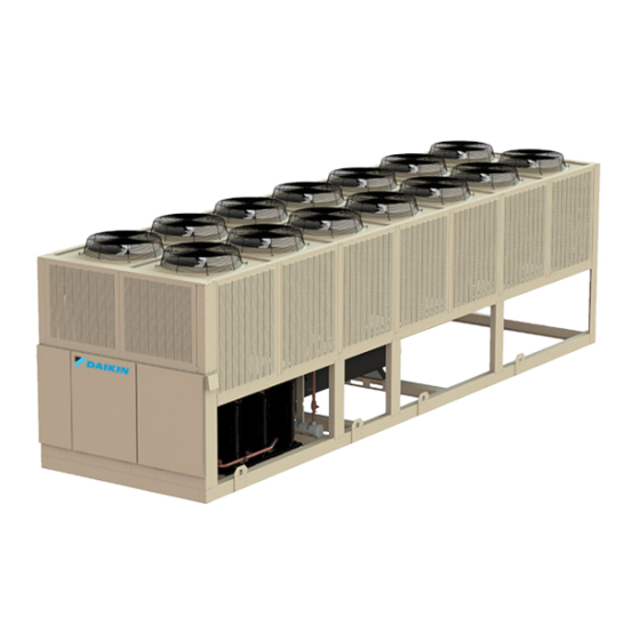

Daikin Air-Cooled Scroll Compressor Chiller AGZ120EDSEMNNOO

Perform compressor vibration test

NOTE! Annual (or spring start-up) operations includes all weekly and monthly operations;

NOTE! Log readings can be taken daily for a higher level of unit observation;

Warning: This maintenance check requires trained personnel with PPE!

Is the unit operating at ambient temperatures of 105°F (40.6°C) and above?

Is the fan VFD (low ambient option) included in the unit?

Enter the current ambient temperature

Is the exhaust fan operational?

Sign off on the High Ambient Control Panel Maintenance

Clean epoxy coated condenser coils

NOTE! Coil rinsing and cleaning can be required more frequently in areas with a high level of airborne particles;

LOCKOUT/TAGOUT all power sources prior to starting, pressurizing, de-pressuring, or powering down the Chiller

Disconnect electrical power before servicing the equipment

Failure to follow this warning exactly can result in serious injury or death

The panel is always energized even if the system switch is off. If it is necessary to de-energize the complete panel, including crankcase heaters, pull the main unit disconnect

More than one disconnect may be required to de-energize the unit. Failure to do so may result in serious injury or death

Warranty may be affected if wiring is not in accordance with specifications

A blown fuse or tripped protector may indicate a short, ground fault, or overload
