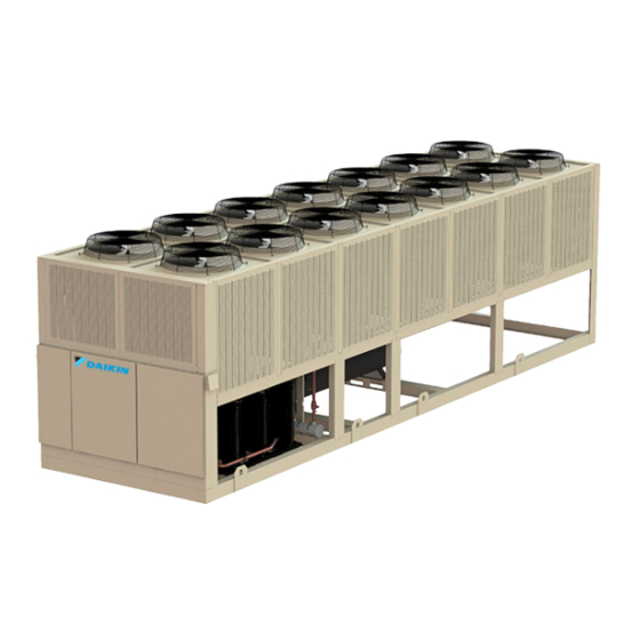

Daikin Air-Cooled Scroll Compressor Chiller AGZ100E

Clean epoxy coated condenser coils

NOTE! Coil rinsing and cleaning can be required more frequently in areas with a high level of airborne particles;

Warning: This test requires trained personnel with PPE!

Compressor vibration test passed?

Note: Annual (or spring start-up) operations includes all weekly and monthly operations.

Sign off on the refrigerator testing

Inspect thermal insulation for integrity

NOTE! Annual (or spring start-up) operations includes all weekly and monthly operations;

DANGER! LOCKOUT/TAGOUT all power sources prior to starting, pressurizing, de-pressuring, or powering down the Chiller

Disconnect electrical power before servicing the equipment

Failure to follow this warning exactly can result in serious injury or death

The panel is always energized even if the system switch is off. If it is necessary to de-energize the complete panel, including crankcase heaters, pull the main unit disconnect

More than one disconnect may be required to de-energize the unit. Failure to do so may result in serious injury or death

WARNING! Warranty may be affected if wiring is not in accordance with specifications

A blown fuse or tripped protector may indicate a short, ground fault, or overload

Before replacing fuse or restarting compressor, the trouble must be found and corrected

It is important to have a qualified control panel electrician service this panel

Warning: This maintenance check requires trained personnel with PPE!

Is the unit operating at ambient temperatures of 105°F (40.6°C) and above?

If the unit is not operating at the required temperature, report the issues to the maintenance team and stop the procedure

Is the fan VFD (low ambient option) included in the unit?

Enter the current ambient temperature

If the inlet filters are not clean, clean them as required

If the fan is not operational, report the issue to the maintenance team
