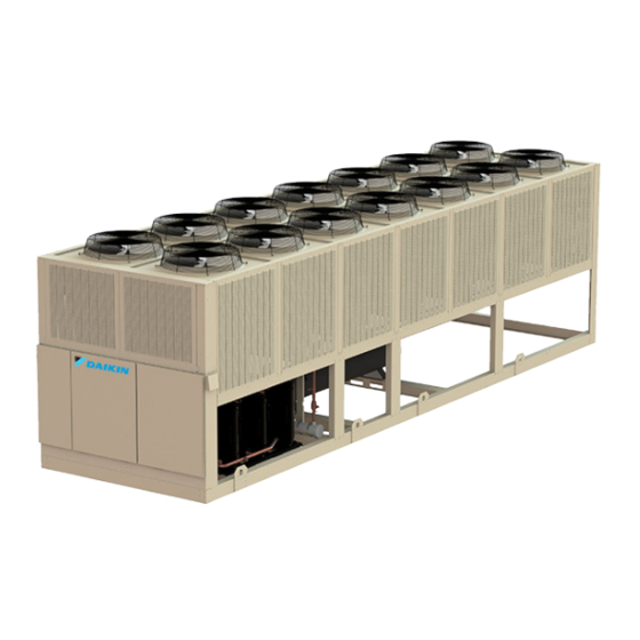

Daikin Air-Cooled Scroll Compressor Chiller AGZ030EDSEMUGOO

NOTE! Log readings can be taken daily for a higher level of unit observation

Sign off on the weekly inspection

NOTE! Coil rinsing and cleaning can be required more frequently in areas with a high level of airborne particles

NOTE! Monthly operations include all weekly operations;

Sign off on the monthly condenser service

DANGER! LOCKOUT/TAGOUT all power sources prior to starting, pressurizing, de-pressuring, or powering down the Chiller

Disconnect electrical power before servicing the equipment

The panel is always energized even if the system switch is off. If it is necessary to de-energize the complete panel, including crankcase heaters, pull the main unit disconnect

More than one disconnect may be required to de-energize the unit. Failure to do so may result in serious injury or death

WARNING! Warranty may be affected if wiring is not in accordance with specifications

A blown fuse or tripped protector may indicate a short, ground fault, or overload

Before replacing fuse or restarting compressor, the trouble must be found and corrected

It is important to have a qualified control panel electrician service this panel

Unqualified tampering with the controls can cause serious damage to equipment and void the warranty

Inspect thermal insulation for integrity

NOTE! Annual (or spring start-up) operations includes all weekly and monthly operations;

Clean epoxy coated condenser coils

NOTE! Coil rinsing and cleaning can be required more frequently in areas with a high level of airborne particles

Is the area high in airborne particles?

Sign off on the condenser maintenance
