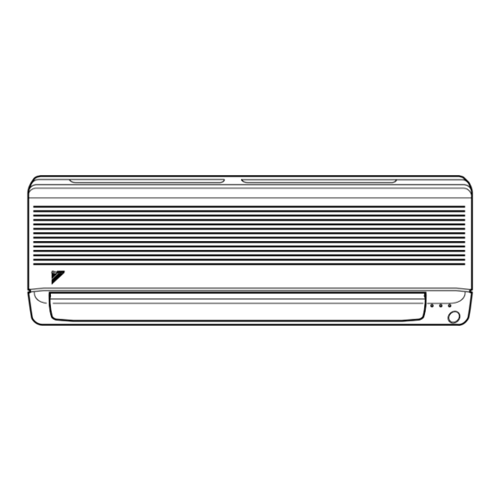

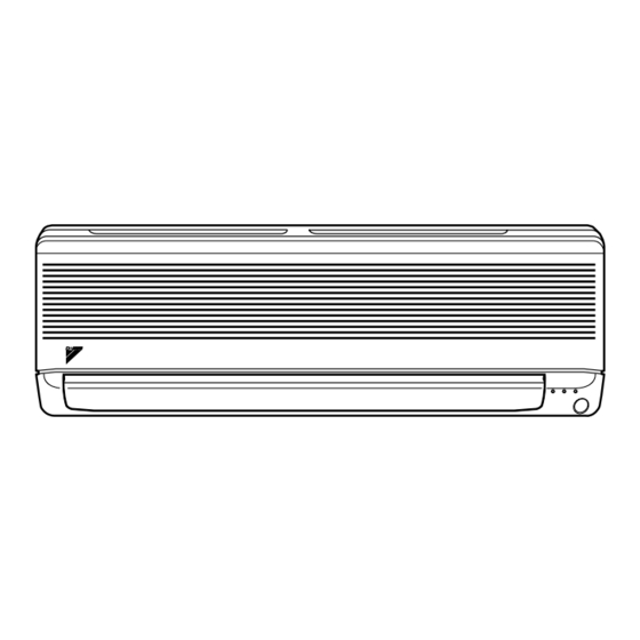

Daikin Air Conditioner FTY60GV1A

Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded

Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit

Check that, the earth wire is not disconnected or broken

Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded

If no drain water is seen, water may be leaking from the indoor unit. Is this the case?

Stop operation and consult the service shop if water is leaking from the indoor unit

Sign off on the air conditioner check

Hold the grille by the tabs on the two sides and lift it until it stops with a click

Push CLEANING LAMP reset button

Push a little upwards the tab at the center of each air filter, then pull it down

Take off the air purifying filters and clean them

Filters cleaned with water or vacuum cleaner

If the dust does not come off easily wash them with neutral detergent thinned with lukewarm water, then dry them up in the shade

Warning: Replace filters when they turn as dark as the sample label, even if they are not yet 3 months old

Open the front grille and pull out the air filters

Take off the air cleaning filters

Detach the filter element and attach a new one

Attach the air purifying filter

Set the air filters as they were and close the front grille (Push the grille at the 4 points, two at both sides and two in the middle.)

NOTE! To order air purifying filters, contact the service shop where you bought the air conditioner. Once the air purifying filter element gets dirty, it is not reusable but must be thrown away. Operation with dirty air purifying filters: cannot clean the air, results in poor cooling or heating, may cause odour.

Sign off on the filter replacement

CAUTION! When removing or attaching the front grille, use a robust and stable stool and watch your steps carefully. When removing or attaching the front grille, support the grille securely with hand to prevent it from falling. For cleaning, do not use water hotter than 40°C, benzine, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing brushes nor other hard stuff. After cleaning, make sure that the front grille is securely fixed.

Open the front grille. Hold the grille by the tabs on the two sides and lift it until it stops with a click.

Remove the front grille. Supporting the front grille with one hand, release the lock by sliding down the knob with the other hand. To remove the front grille, pull it toward yourself with both hands.

Clean the front grille. You may wipe it with a soft cloth soaked in water. Only neutral detergent may be used. You may wash the grille with water. After washing, dry it with cloth, then dry it up in the shade.

Attach the front grille. Set the 3 keys of the front grille into the slots and push then in all the way. Supporting the front grille with one hand, fit the lock by sliding up the knob with the other hand.

Close the front grille slowly in this state. Push the grille at the 4 points, two at both sides and two in the middle.

Sign off on the front grille cleaning
