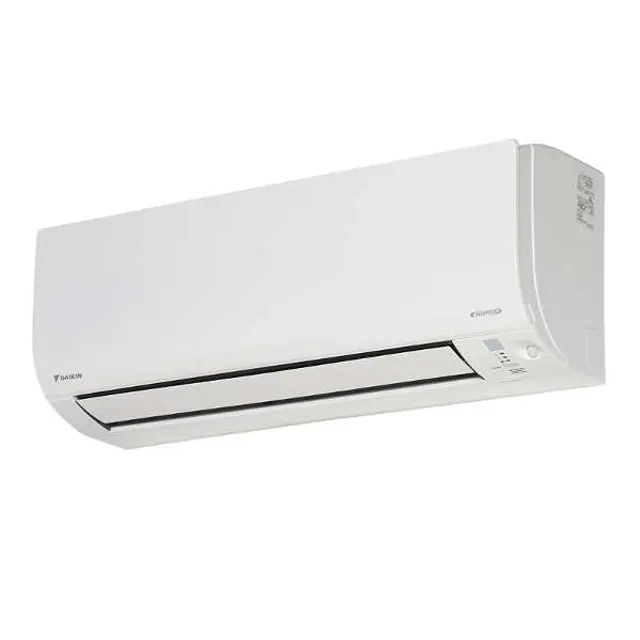

Daikin Air Conditioner FTXV25UVMA

Warning: Ensure the air conditioner is turned off before starting the cleaning process

Upload a photo of the pulled out air filters

Wash the air filters with water or clean them with vacuum cleaner

If the dust does not come off easily, did you wash the air filters with neutral detergent thinned with lukewarm water?

Remove the titanium apatite photocatalytic air-purifying filter

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Take off the titanium apatite photocatalytic air-purifying filters

Remove the filters from the tabs by remove 6 points of hook

Clean or replace the titanium apatite photocatalytic air-purifying filters

Vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

After washing, shake off remaining water and let them dry in the shade

Remove the filter from the filter frame and prepare a new one

When attaching the filter, check that the filter is properly set in the tabs

CAUTION: When removing or attaching the front panel, stand on a solid, stable base and take care not to fall

CAUTION: When removing or attaching the front panel, support the panel securely with your hand to prevent it from falling

Open the front panel by holding the panel tabs on the 2 sides and open it

Remove the front panel by sliding it to either the left or right and pull it toward you

Disconnect the front panel shaft on the other side in the same manner

Clean the front panel by wiping it with a soft damp cloth

Select the type of detergent used

If washed with water, wipe it with a dry soft cloth, and let it dry in the shade after washing

Attach the front panel by aligning the front panel shaft on the left and right of the front panel with the grooves, then push them all the way in

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

For cleaning, do not use the materials as follows: Hot water above 40°C, Volatile liquid such as benzene, petrol and thinner, Polishing compound, Rough materials such as a scrubbing brush

Prior to a long period of non-use:

Operate the FAN mode for several hours on a fine day to dry out the inside

Press ON/OFF and start the operation

Warning: Always replace both batteries together using the same type

Sign off on the battery replacement
