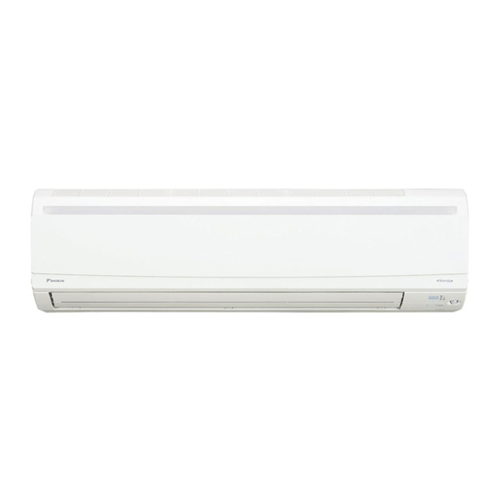

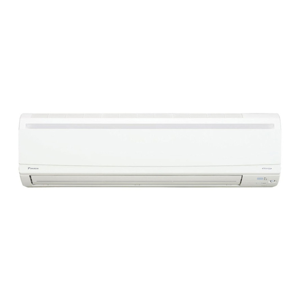

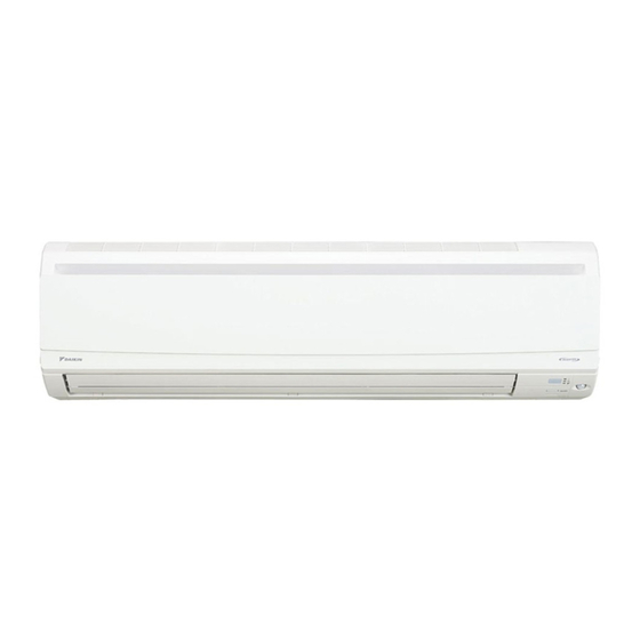

Daikin Air Conditioner FTXS80KVMA

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Hold the front panel by the tabs on the both sides and lift it until it stops with a click

Open the front panel further while sliding it to either the left or right and pulling it toward you

Disconnect the rotation dowel on one side

Then disconnect the front panel shaft on the other side in the same manner

Wipe it with a soft cloth soaked in water

Warning: Ensure the air conditioner is turned off and unplugged before starting the procedure.

Did you take off the titanium apatite photocatalytic air-purifying filter?

Did you open the front panel and pull out the air filters?

Did you hold the recessed parts of the frame and unhook the 4 claws?

Did you remove the tabs on the filter frame and replace with a new filter?

Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter.

Did you dispose of the old filter as non-flammable waste?

Did you set the filters as they were and close the front panel?

Did you press the front panel at both sides and the central area?

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Filter tab at the center of each air filter pushed slightly upward, then pulled down

Air filters washed with water or cleaned with vacuum cleaner

Filters set as they were and front panel closed

Front panel pressed at both sides and the central area

NOTE! If the dust does not come off easily

Air filters washed with neutral detergent thinned with lukewarm water, then allowed to dry in the shade

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Take off the titanium apatite photocatalytic air-purifying filter

Opened the front panel and pulled out the air filters?

Held the recessed parts of the frame and unhooked the 4 claws?

Clean the titanium apatite photocatalytic air-purifying filter

Vacuumed dust, and soaked in lukewarm water or water for about 10 to 15 minutes if dirt is heavy?

NOTE! Do not remove the filter from frame when washing with water
