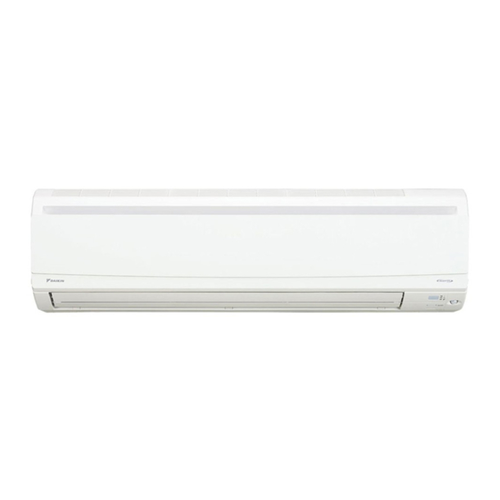

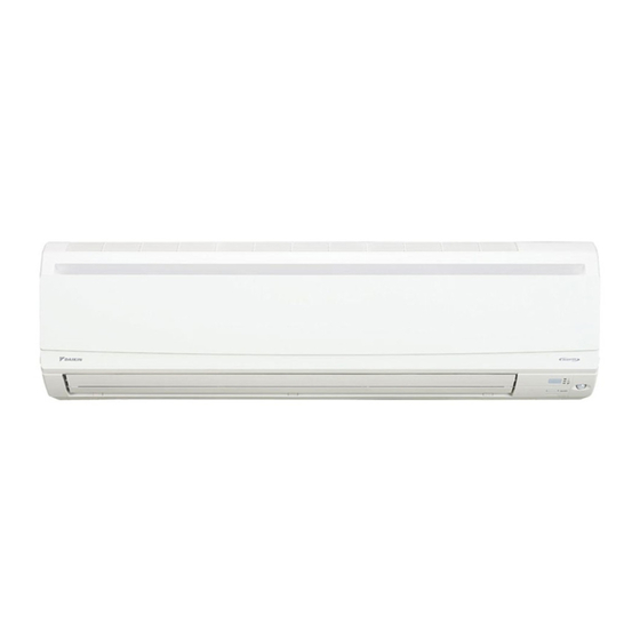

Daikin Air Conditioner FTXS100KVMA

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Filter tab at the center of each air filter pushed slightly upward, then pulled down

Method of cleaning the air filters

Filters set as they were and front panel closed

Front panel pressed at both sides and the central area

NOTE! If the dust does not come off easily

Air filters washed with neutral detergent thinned with lukewarm water

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Operation stopped and breaker turned off

Warning: Ensure the air conditioner is turned off and unplugged before starting the procedure.

Front panel opened and air filters pulled out

Recessed parts of the frame held and 4 claws unhooked

Tabs on the filter frame removed and replaced with a new filter

Reminder: Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter.

Old filter disposed as non-flammable waste

Filters set as they were and front panel closed

Front panel pressed at both sides and the central area

NOTE! Operation with dirty filters – cannot deodorize the air – cannot clean the air – results in poor heating or cooling – may cause odor.

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Take off the titanium apatite photocatalytic air-purifying filter

Opened the front panel and pulled out the air filters?

Held the recessed parts of the frame and unhooked the 4 claws?

Clean the titanium apatite photocatalytic air-purifying filter

Vacuumed dust, and soaked in lukewarm water or water for about 10 to 15 minutes if dirt is heavy?

NOTE! Do not remove the filter from frame when washing with water
