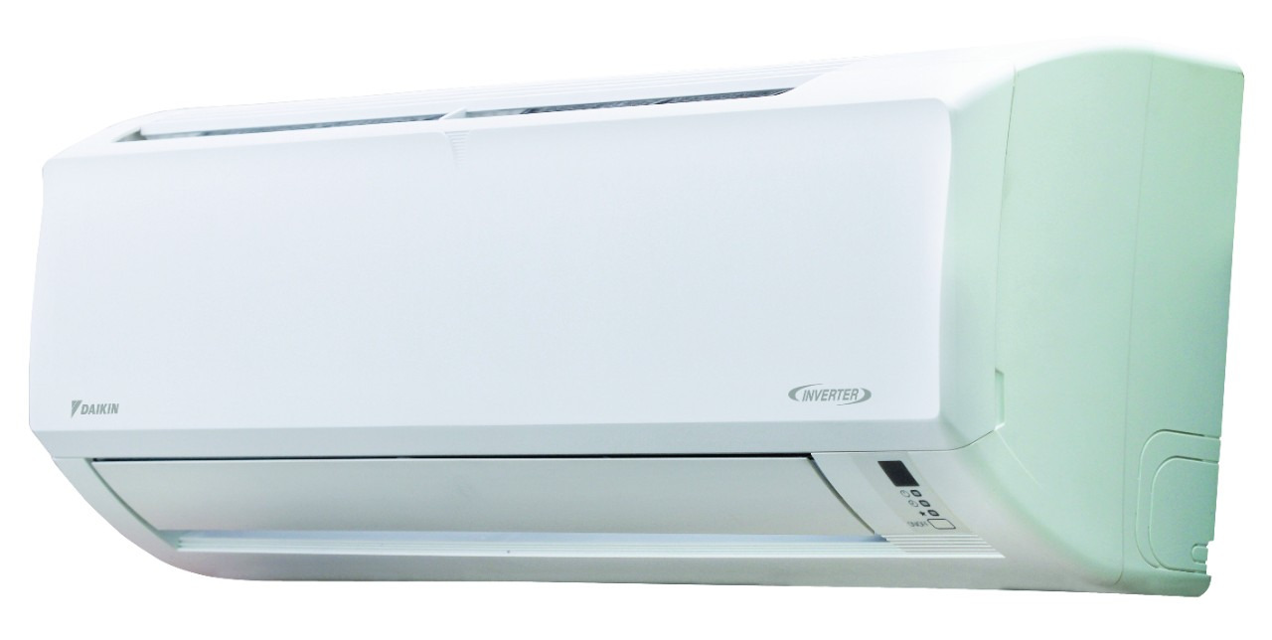

Daikin Air Conditioner FTXN35LV1B

Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops

Push a little upwards the tab at the center of each air filter, then pull it down

When shaking off remaining water, do not wring the filter

Set the air filter and close the front panel

Insert claws of the filters into slots of the front panel

Close the front panel slowly and push the panel at the 3 points. (1 on each side and 1 in the middle.)

CAUTION! Avoid direct contact of any oil treatment cleaners on plastic part. This may cause plastic part to deform as a result of chemical reaction

Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops

While lifting the front panel further, slide it to the right and pull it to the front side. The left rotating shaft is detached. Slide the right rotating shaft to the left and pull it to the front side to remove it

Align the right and left rotating shafts of the front panel with the grooves and push them all the way in

Gently close the front panel. (Push both ends and the center on the front panel.)

CAUTION! • Do not touch the metal parts of the indoor unit. It may cause an injury • When removing or attaching the front panel, support the panel securely with hand to prevent it from falling • For cleaning, do not use hot water above 40°C, benzine, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing brushes, nor other hand stuff • After cleaning, make sure that the front panel is securely fixed
