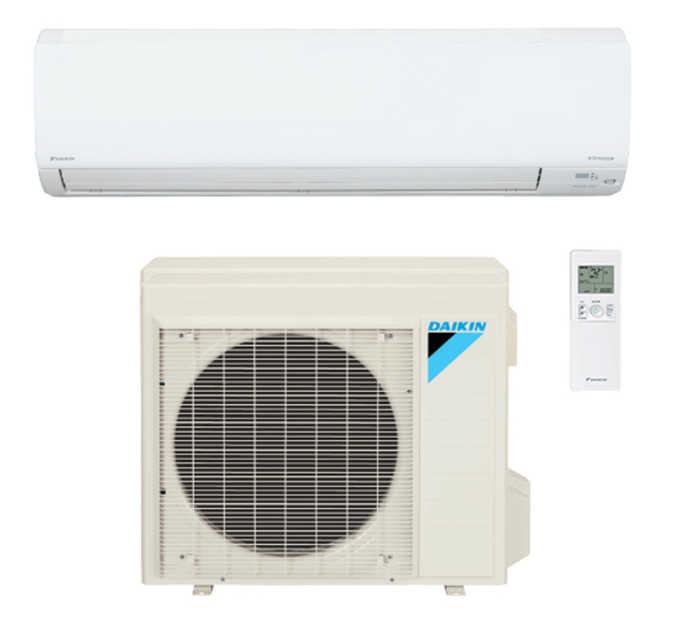

Daikin Air Conditioner FTX30WVJU9

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

WARNING! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzine, gasoline and thinner, Polishing compounds, Rough materials such as a scrubbing brush, Sprays such as deodorizers

Did you stop the operation and turn off the circuit breaker before cleaning?

Did you avoid touching the aluminum fins of the indoor unit?

Did you avoid using water hotter than 104°F (40°C), volatile liquid such as benzine, gasoline and thinner, polishing compounds, rough materials such as a scrubbing brush, sprays such as deodorizers for cleaning?

Upload a photo of the cleaned units

Sign off on the cleaning procedure

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzine, gasoline and thinner, Polishing compounds, Rough materials such as a scrubbing brush, Sprays such as deodorizers.

Did you open the front panel and pull out the air filters?

Did you hold the recessed parts of the frame and unhook the 4 claws?

Did you vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty?

Did you ensure not to remove the filter from the frame when washing with water?

After washing, did you shake off remaining water and let them dry in the shade?

Did you ensure not to wring out the filter to remove water from it?

Did you set the titanium apatite photocatalytic air-purifying filters as they were?

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzine, gasoline and thinner, Polishing compounds, Rough materials such as a scrubbing brush, Sprays such as deodorizers.

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminum fins of the indoor unit?

Did you pull out the air filters?

Push the filter tab at the center of each air filter slightly upward, then pull it down

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzine, gasoline and thinner, Polishing compounds, Rough materials such as a scrubbing brush, Sprays such as deodorizers.

Did you open the front panel and pull out the air filters?

Did you hold the recessed parts of the frame and unhook the 4 claws?

Did you remove the filter from the filter frame and attach a new one?

Did you reuse the filter frame when replacing the titanium apatite photocatalytic air-purifying filter?

When attaching the filter, did you check that the filter is properly set in the tabs?

Did you dispose of the old filter as non-flammable waste?

Did you set the titanium apatite photocatalytic air-purifying filters as they were?

CAUTION! Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use any of the following: Water hotter than 104°F (40°C), Volatile liquid such as benzine, gasoline and thinner, Polishing compounds, Rough materials such as a scrubbing brush, Sprays such as deodorizers.

Did you stop the operation and turn off the circuit breaker?

Did you avoid touching the aluminum fins of the indoor unit?

Hold the front panel by the tabs on the both sides and lift it until it stops with a click

Open the front panel further while sliding it to either the left or right and pulling it toward you

Disconnect the rotation dowel on one side
