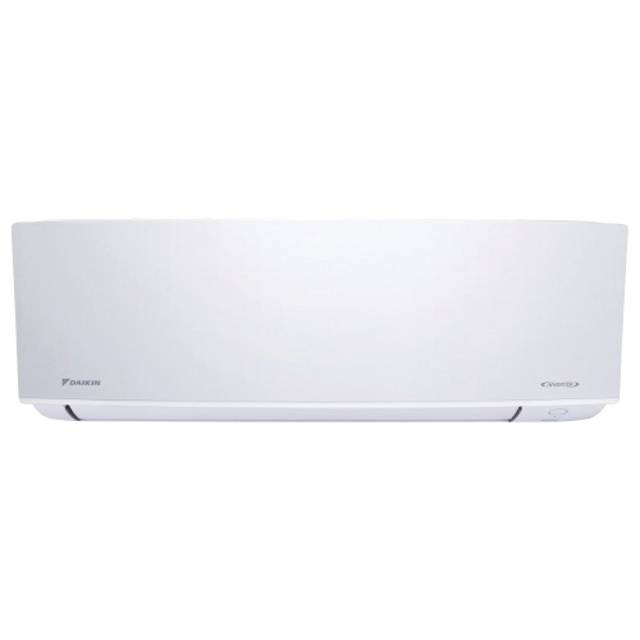

Daikin Air Conditioner FTX12WMVJU9

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FTX12WMVJU9

Integrate maintenance plans directly into your work orders in MaintainX.

Indoor Unit, Outdoor Unit and Remote Controller Cleaning

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

WARNING! For cleaning, do not use the materials as follows: Hot water above 104°F (40°C), Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Did you stop the operation and turn the breaker off before cleaning?

Did you avoid touching the aluminum fins of the indoor unit?

Did you avoid using hot water above 104°F (40°C), benzine, gasoline, thinner, other volatile oils, polishing compound, scrubbing brushes, other hard stuff for cleaning?

Did you wipe the units with a soft cloth?

Sign off on the cleaning procedure

Run this procedure

3 Yearly Titanium Apatite Photocatalytic Air Purifying Filter Replacement

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use hot water above 104°F (40°C), Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff.

Filter removed from the filter frame

New filter attached

Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite deodorizing filter.

Filter properly set in the tabs

Dispose of the old filter as non-flammable waste.

Titanium apatite deodorizing filters set as they were

Filters reattached

Run this procedure

6 Monthly Titanium Apatite Photocatalytic Air Purifying Filter Cleaning

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use the materials as follows: Hot water above 104°F (40°C), Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff.

Did you open the front panel and pull out the air filters?

Did you take off the titanium apatite deodorizing filters?

Did you hold the recessed parts of the frame and unhook the 4 claws?

Did you remove the filters from the tab?

Did you clean or replace the titanium apatite deodorizing filters?

Did you vacuum dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty?

Did you make sure not to remove the filter from the frame when washing with water?

Run this procedure

2 Weekly Air Filter Cleaning

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off. Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury.

WARNING! For cleaning, do not use hot water above 104°F (40°C), Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff.

Open the front panel. Hold the front panel by the sides and open it.

Pull out the air filters. Push the filter tab at the center of each air filter slightly upward, then pull it down.

Wash the air filters with water or clean them with vacuum cleaner.

Reattach the filters.

Close the front panel slowly. Press the front panel at both sides and in the central area. Make sure that the front panel is securely fixed.

Wash the air filters with neutral detergent thinned with lukewarm water, then allow to dry in the shade.

Be sure to remove the titanium apatite photocatalytic air-purifying filter. Refer to titanium apatite photocatalytic air-purifying filter on the next page.

Run this procedure

Front Panel Cleaning

CAUTION! Before cleaning, be sure to stop the operation and turn the breaker off

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

WARNING! For cleaning, do not use the materials as follows: Hot water above 104°F (40°C), Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff

Did you stop the operation and turn the breaker off?

Did you avoid touching the aluminum fins of the indoor unit?

Did you avoid using hot water above 104°F (40°C), Benzine, gasoline, thinner, other volatile oils, Polishing compound, Scrubbing brushes, other hard stuff for cleaning?

Did you wipe with a soft cloth which has been moistened with water or neutral detergent?

Sign here to confirm you followed all the steps correctly

Run this procedure
