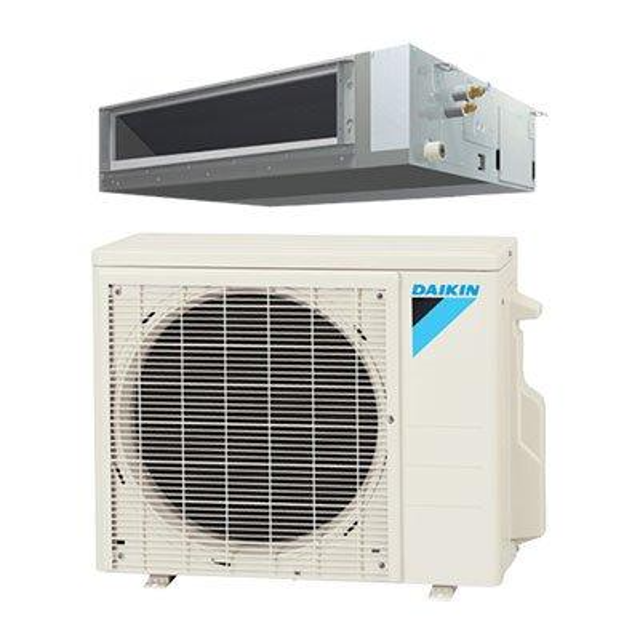

Daikin Air Conditioner FDMQ18RVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FDMQ18RVJU

Integrate maintenance plans directly into your work orders in MaintainX.

1250 Hourly / 6 Monthly Air FIlter Cleaning

CAUTION! Only a qualified service person is allowed to perform maintenance. Before cleaning, be sure to stop the operation and turn off the circuit breaker. Do not touch the aluminium fins of the indoor unit. If you touch those parts, this may cause an injury.

NOTE! Volatile liquid such as benzene, gasoline and thinner, Polishing compounds, Rough materials such as a scrubbing brush should not be used for cleaning.

You may change the time of indication “Time to clean filter”. If the indoor unit is used in a space where the air is too contaminated, ask your local dealer for solution.

If it becomes difficult to remove contamination from the air filter, replace the air filter. (Air filter for replacement is a separately sold accessory.)

Do not remove the air filter except when cleaning. Unnecessary handling may damage the filter. (This product is not provided with an air filter as a standard accessory.)

Do not attach objects other than the genuine air filter (e.g., kitchen paper) to the air inlet. Otherwise, the performance of the air conditioner will be degraded, and icing or water leakage may result.

This product is a ceiling mounted duct type air conditioner. Installing under roof.

If the air filter (sold separately) is used, request a special contractor for the cleaning of the air filter. Not installing under roof.

Always use the long-life filter chamber (sold separately). Be sure to request your dealer for the installation of the long-life chamber. For the methods of mounting, dismounting, and cleaning the air filter, refer to the manual provided with the air filter.

Run this procedure

Air Outlet, Outside Panels and Remote Controller Cleaning

NOTE! Do not wash the suction grille with water of 122°F (50°C) or higher. It may cause discoloration and deformation. When drying the suction grille, do not heat it with fire. It may cause burning. Do not use substances such as gasoline, benzene, thinner, polishing powder and liquid insecticide sold in the market. It may cause discoloration and deformation.

Is the circuit breaker turned off?

Are you wearing protective gloves to avoid injury from the aluminium fins?

Is the cleaning cloth soft and free of any harmful substances?

Are the stains removed with water or neutral detergent?

WE RECOMMEND PERIODICAL MAINTENANCE. In certain operating conditions, the inside of the air conditioner may get foul after several seasons of use, resulting in poor performance. It is recommended to have periodical maintenance by a specialist. For specialist maintenance, please contact the dealer where you bought the air conditioner. The maintenance cost must be borne by the user.

Sign off on the cleaning procedure

Run this procedure
