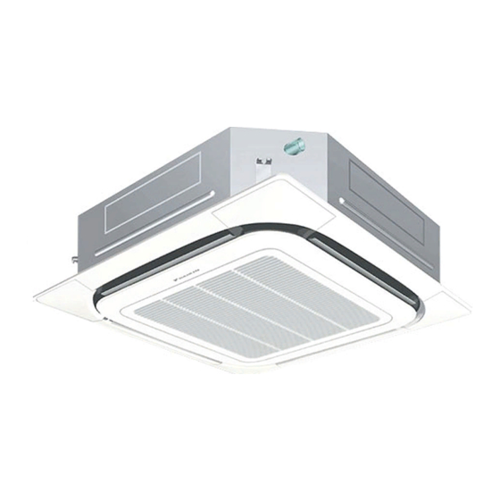

Daikin Air Conditioner FCQN100KVEA

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FCQN100KVEA

Integrate maintenance plans directly into your work orders in MaintainX.

Suction Grille Cleaning

WARNING: Only a qualified person is allowed to perform maintenance without daily maintenance. Before touching any of connection wirings, be sure to turn off all power supply switches. Contact professional personnel about attachment of accessories and be sure to use only accessories specified by the manufacturer.

CAUTION: Before cleaning, be sure to stop unit operation, turn the breaker off or remove the power cord. Do not wash the air conditioner with water. Consult your dealer regarding cleaning the inside of the air conditioner. Take care of scaffolding and exercise caution when working high above ground level.

Did you turn off all power supply switches?

Did you stop unit operation, turn the breaker off or remove the power cord?

Open the suction grille

Remove the strings of the suction grille

Detach the suction grille

Detach the air filter

Clean the suction grille with a soft bristle brush and neutral detergent or water, and dry thoroughly

Run this procedure

Air Outlet and Outside Panels Cleaning

WARNING! Only a qualified person is allowed to perform maintenance without daily maintenance

Before touching any of connection wirings, be sure to turn off all power supply switches

Contact professional personnel about attachment of accessories and be sure to use only accessories specified by the manufacturer. If a defect results from your own workmanship, it may result in water leaks, electric shock or fire

CAUTION! Before cleaning, be sure to stop unit operation, turn the breaker off or remove the power cord. Otherwise, an electric shock and injury may result

Do not wash the air conditioner with water, as this may result in electric shocks or fire

Consult your dealer regarding cleaning the inside of the air conditioner. Improper cleaning may cause breakage of plastic parts, water leakage and other damage as well as electric shocks

Take care of scaffolding and exercise caution when working high above ground level

NOTE! Do not use gasoline, benzene, thinner, polishing powder, liquid insecticide. It may cause discoloring or warping

Do not let the indoor unit get wet. It may cause an electric shock or a fire

Run this procedure

Air Filter Cleaning

WARNING: Only a qualified person is allowed to perform maintenance without daily maintenance

WARNING: Before touching any of connection wirings, be sure to turn off all power supply switches

WARNING: Contact professional personnel about attachment of accessories and be sure to use only accessories specified by the manufacturer. If a defect results from your own workmanship, it may result in water leaks, electric shock or fire

CAUTION: Before cleaning, be sure to stop unit operation, turn the breaker off or remove the power cord. Otherwise, an electric shock and injury may result

CAUTION: Do not wash the air conditioner with water, as this may result in electric shocks or fire

CAUTION: Consult your dealer regarding cleaning the inside of the air conditioner. Improper cleaning may cause breakage of plastic parts, water leakage and other damage as well as electric shocks

CAUTION: Take care of scaffolding and exercise caution when working high above ground level

NOTICE: Clean the air filter when the display shows “TIME TO CLEAN AIR FILTER”

NOTICE: It will display that it will operate for a set amount of time

Run this procedure
