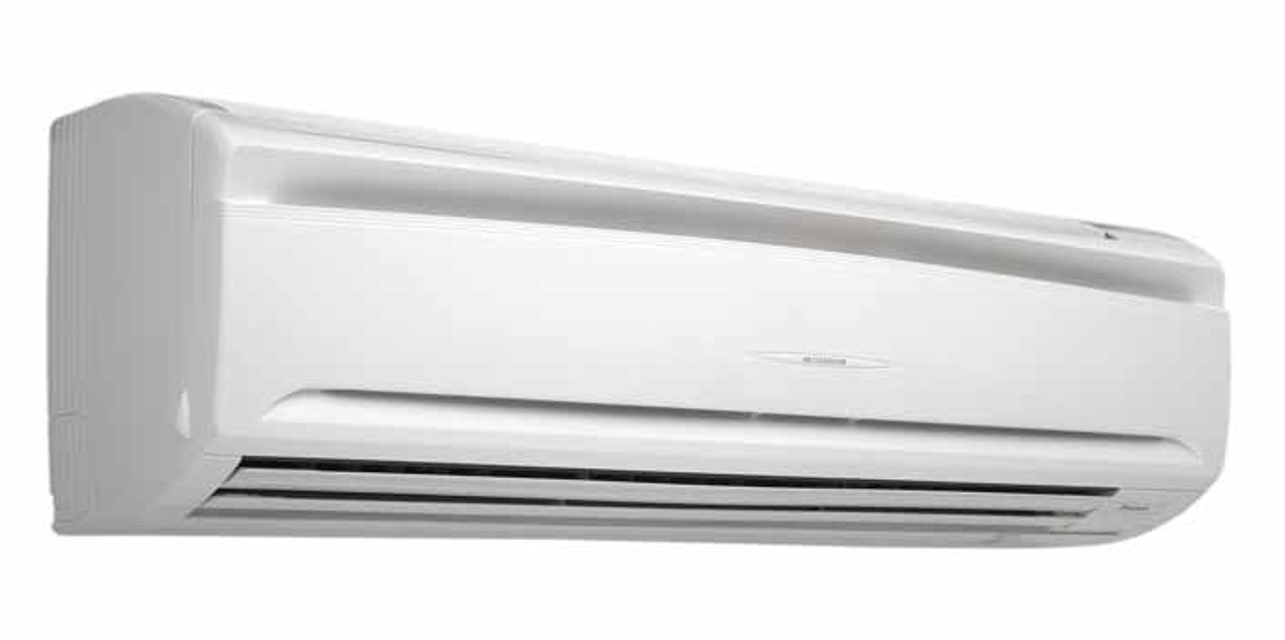

Daikin Air Conditioner FAQ71CVEB

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FAQ71CVEB

Integrate maintenance plans directly into your work orders in MaintainX.

Front Panel Cleaning

WARNING: Do not use flammable gases (such as hair or insect sprays) near the indoor unit. Do not wipe the indoor unit with benzene or thinner. This may cause cracking, electric shock, or fire.

CAUTION: Do not wash the air conditioner with water. Doing so may result in an electric shock and fire. To clean the air conditioner, be sure to stop operation, and turn the power circuit breaker off. It may cause electric shock or injury. Be careful of your footing when working at high places. Unstable footing may cause the person to fall and get injured.

NOTE: Do not remove the air filter except for during cleaning. Doing so may damage the unit. Do not install anything (such as kitchen paper) other than the approved air filters on the air inlet. Doing so may lower operation efficiency and cause freezing or leakage.

CAUTION: Hold the front panel firmly so that it does not fall. Do not use water which is 50°C or more, benzene, gasoline, thinner, or other volatile substances, polishing powder, or hard scrub brushes to clean the panel. Do not expose it to fire, as doing so may result in burning. Make sure the front panel is solidly in place.

Open the front panel. Place your fingers on the panel protrusions on the left and right sides of the main unit and open until the panel stops.

Remove the front panel. Push the axis on either side of the front panel towards the center of the main unit and remove it.

Clean the front panel. Wipe gently with a soft wet cloth. Only use neutral cleaning agents. After washing, wipe off the remaining water completely and dry in the shade.

Attach the front panel. Set the keys of the front panel into the slots and push them in all the way.

Close the front panel slowly in this state.

Run this procedure

Air Inlet, Air Outlet, Exterior and Remote Controller Cleaning

WARNING! Do not use flammable gases (such as hair or insect sprays) near the indoor unit

WARNING! Do not wipe the indoor unit with benzene or thinner. This may cause cracking, electric shock, or fire

CAUTION! Do not wash the air conditioner with water. Doing so may result in an electric shock and fire

CAUTION! To clean the air conditioner, be sure to stop operation, and turn the power circuit breaker off. It may cause electric shock or injury

CAUTION! Be careful of your footing when working at high places. Unstable footing may cause the person to fall and get injured

NOTE! Do not remove the air filter except for during cleaning. Doing so may damage the unit

NOTE! Do not install anything (such as kitchen paper) other than the approved air filters on the air inlet. Doing so may lower operation efficiency and cause freezing or leakage

Wipe with a soft dry cloth

If a stain cannot be removed, wipe it with a cloth firmly wringed after soaked in diluted neutral detergent

Run this procedure

100 Hourly / 2 Weekly Air Filter Cleaning

WARNING! Do not use flammable gases (such as hair or insect sprays) near the indoor unit. Do not wipe the indoor unit with benzene or thinner. This may cause cracking, electric shock, or fire.

CAUTION! Do not wash the air conditioner with water. Doing so may result in an electric shock and fire. To clean the air conditioner, be sure to stop operation, and turn the power circuit breaker off. It may cause electric shock or injury. Be careful of your footing when working at high places. Unstable footing may cause the person to fall and get injured.

NOTE! Do not remove the air filter except for during cleaning. Doing so may damage the unit. Do not install anything (such as kitchen paper) other than the approved air filters on the air inlet. Doing so may lower operation efficiency and cause freezing or leakage.

Clean the air filter when the display shows “TIME TO CLEAN AIR FILTER” on the remote controller.

Open the front panel. Place your fingers on the panel protrusions on the left and right sides of the main unit and open until the panel stops.

Pull out the air filter. Push up the tab in the center of the air filter slightly, then pull out the filter downward.

Clean the air filter. Use vacuum cleaner or wash the air filter with water.

NOTE! Do not wash the air conditioner with water which is 50°C or more, as doing so may result in discoloration and/or deformation. After removing the filter, do not touch the heat exchanger to avoid cutting your hand. Do not expose it to fire, as doing so may result in burning.

Attach the air filter. Once cleaning is done be sure to replace the air filter as it was.
