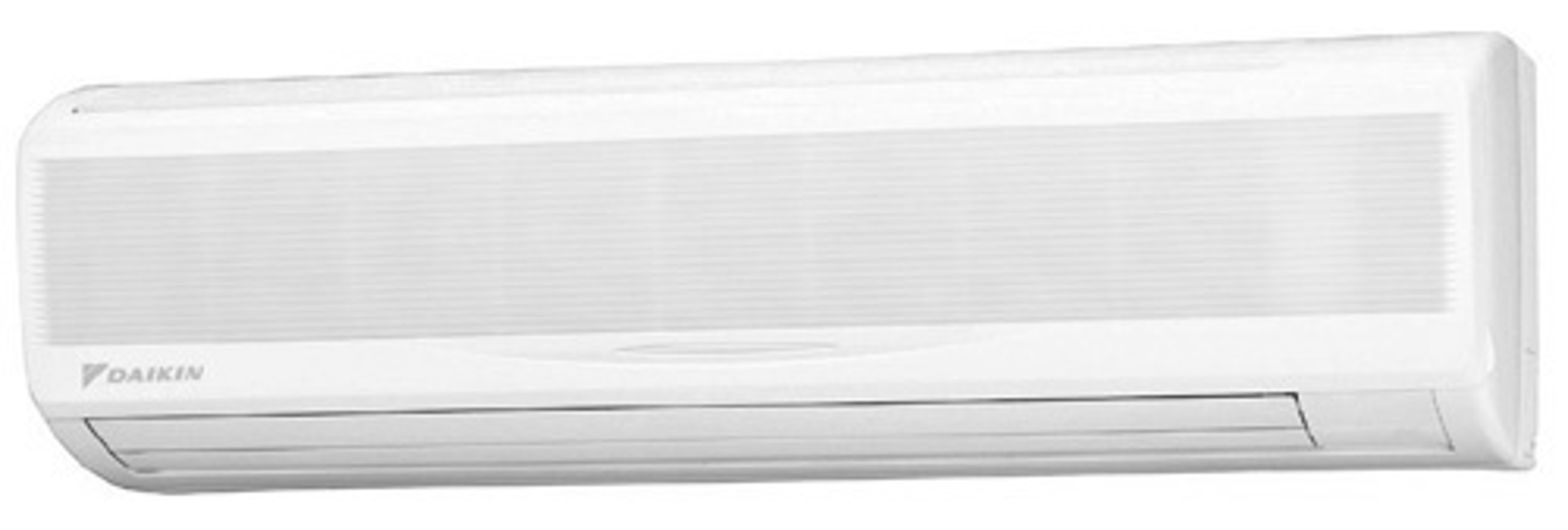

Daikin Air Conditioner FAQ24PVJU

Warning: Do not remove the air filter except when cleaning. This may cause breakage.

Increase the frequency of cleaning if the unit is installed in a room where the air is extremely contaminated.

Display shows 'TIME TO CLEAN AIR FILTER'?

Place your fingers on the protrusions on the left and right sides of the front panel and open until the panel stops.

Push up the tab in the center of the air filter slightly then pull it out downwards.

Use a vacuum cleaner or wash the air filter with water.

Warning: Do not remove the air filter except when cleaning. This may cause breakage.

Hold the front panel firmly so that it does not fall.

Do not use water over 120°F, benzine, gasoline, thinner, or other volatile substances, polishing powder, or hard scrub brushes to clean the panel.

Make sure the front panel is solidly in place.

Open the front panel. Place your fingers on the protrusions on the left and right sides of the front panel and open until the panel stops.

Remove the front panel. Push the axes on either side of the front panel towards the center of the main unit and remove.

Clean the front panel. Wipe gently with a soft wet cloth. Only use neutral cleaning agents. After washing off, wipe off any excess water and dry in a shade.

Attach the front panel. Set the keys of the front panel into the slots and push them in all the way.

Close the front panel slowly in this state.

Warning: Do not remove the air filter except when cleaning. This may cause breakage.

Warning: Do not let the indoor unit get wet as it may cause an electric shock or fire.

Note: Do not use gasoline, benzene, thinner, polishing powder, liquid insecticide. It may cause discoloring or warping.

Note: Do not use water or air of 120°F or higher for cleaning.

If yes, what was used for cleaning?

Sign off on the cleaning procedure
