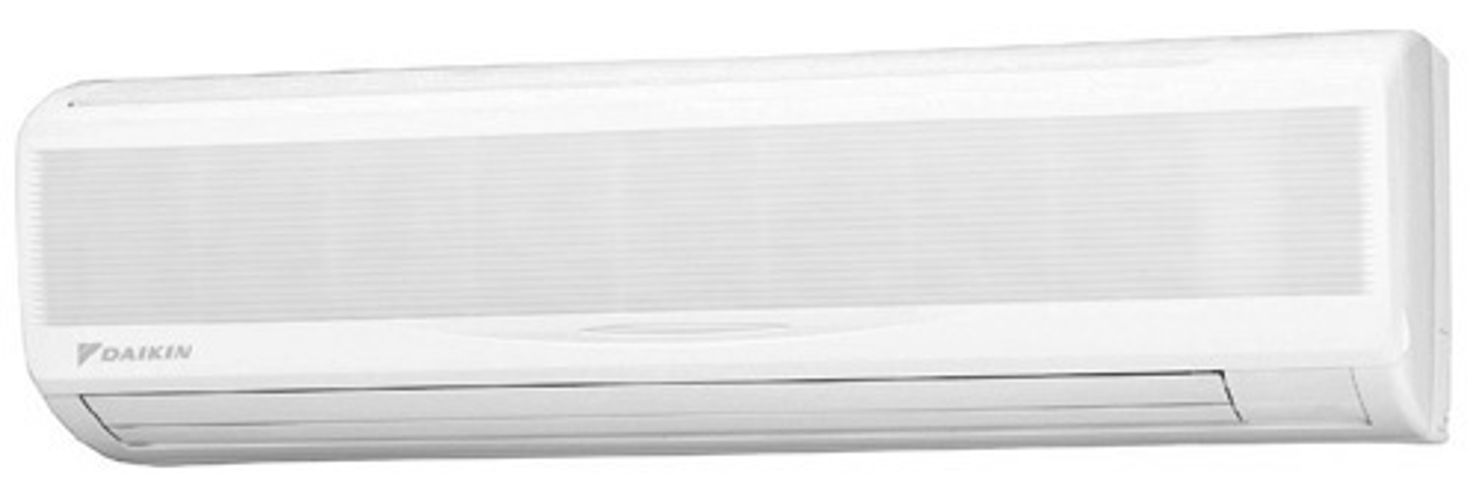

Daikin Air Conditioner FAQ18PVJU

Create an account to install this asset package.

Maintenance Plans for Daikin Air Conditioner Model FAQ18PVJU

Integrate maintenance plans directly into your work orders in MaintainX.

Air Outlet and Exterior Cleaning

Warning: Do not remove the air filter except when cleaning. This may cause breakage.

Clean with soft cloth.

When it is difficult to remove stains, use water or neutral detergent.

WARNING! Do not let the indoor unit get wet as it may cause an electric shock or fire.

NOTE! Do not use gasoline, benzene, thinner, polishing powder, liquid insecticide. It may cause discoloring or warping.

Do not use water or air of 120°F or higher for cleaning.

Cleaning completed without removing the air filter?

Cleaning completed without using prohibited substances?

Cleaning completed without using water or air of 120°F or higher?

Run this procedure

Air Filter Cleaning

Warning: Do not remove the air filter except when cleaning. This may cause breakage.

Increase the frequency of cleaning if the unit is installed in a room where the air is extremely contaminated.

Display shows 'TIME TO CLEAN AIR FILTER'

Open the front panel

Place your fingers on the protrusions on the left and right sides of the front panel and open until the panel stops.

Pull out the air filter

Push up the tab in the center of the air filter slightly then pull it out downwards.

Clean the air filter

Use a vacuum cleaner or wash the air filter with water.

Run this procedure

Front Panel Cleaning

Warning: Do not remove the air filter except when cleaning. This may cause breakage.

Hold the front panel firmly so that it does not fall.

Do not use water over 120°F, benzine, gasoline, thinner, or other volatile substances, polishing powder, or hard scrub brushes to clean the panel.

Make sure the front panel is solidly in place.

Open the front panel. Place your fingers on the protrusions on the left and right sides of the front panel and open until the panel stops.

Remove the front panel. Push the axes on either side of the front panel towards the center of the main unit and remove.

Clean the front panel. Wipe gently with a soft wet cloth. Only use neutral cleaning agents. After washing off, wipe off any excess water and dry in a shade.

Attach the front panel. Set the keys of the front panel into the slots and push them in all the way.

Close the front panel slowly in this state.

Run this procedure
