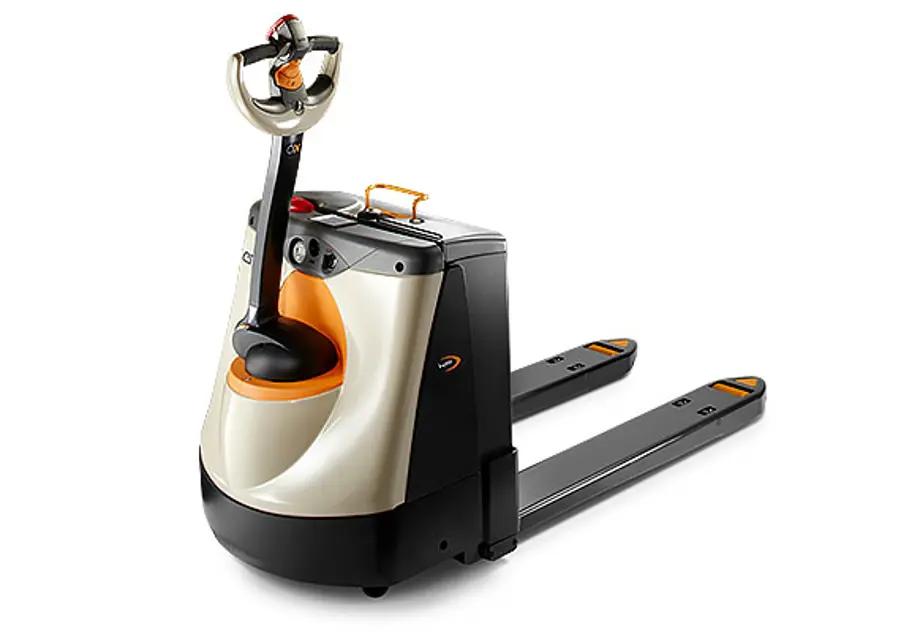

Crown Walkie Pallet Truck WP3030-45

Read the instructions for the charger and power source

Charger has the correct voltage and amperage for the power source

Charging power source in an authorized area

Followed the directions on the charger provided

Test your truck in an uncongested area

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

Check braking distance in forward and reverse. Load size and floor conditions can affect these distances

Know the distance it takes to stop before you start working. If the braking distance is too long for you, don't use your truck

If anything doesn't look, work or feel right, don't drive the truck. Report the problem to your supervisor

Upload the checklist forms from your Crown dealer (part no. OF-3772). Used properly, this checklist can alert service people to needed repairs

- Charge a thin plate pure Lead Acid Battery (TPPL)

1. When the energy level is low, an alarm will sound

2. Charge the battery as soon as possible

3. Opportunity charge during breaks or whenever the truck is not being used

Your company should provide an area that is safe to work on power sources. Use that area for all power source work and charging

• Do not charge or refuel a power source unless you are trained and authorized

• Do not remove or install a power source unless you are trained and authorized

- Charge a Flooded Lead Acid Battery (p.32)

Walk around your truck and check it over

Water level in serviceable batteries is adequate

Battery cables and connectors are not damaged or corroded

All wheels are in good condition

Both forks are secure, straight and not cracked or badly worn

Load backrest is in place and secure

- Charge a V-Force Lithium-Ion Battey

1. Turn off your truck. Do not disconnect the battery

2. Pull out the extension cord and plug it into the AC outlet

3. Follow the charging instructions for the V-Force lithium-ion battery

BEFORE CHARGING POWER SOURCES:

• Read the instructions for the charger and power source

• Make sure that the charger has the correct voltage and amperage for the power source

• Only charge a power source in an authorized area

AVOID DAMAGING THE POWER SOURCE:
