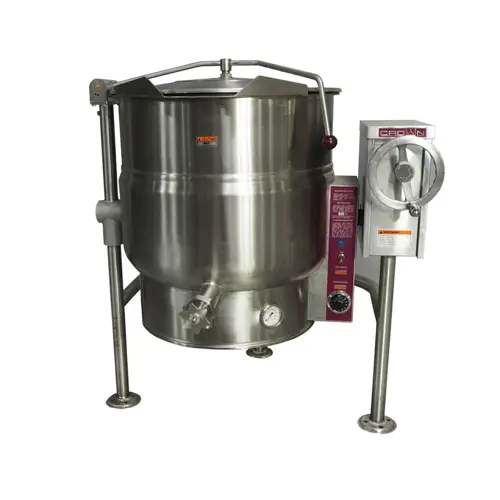

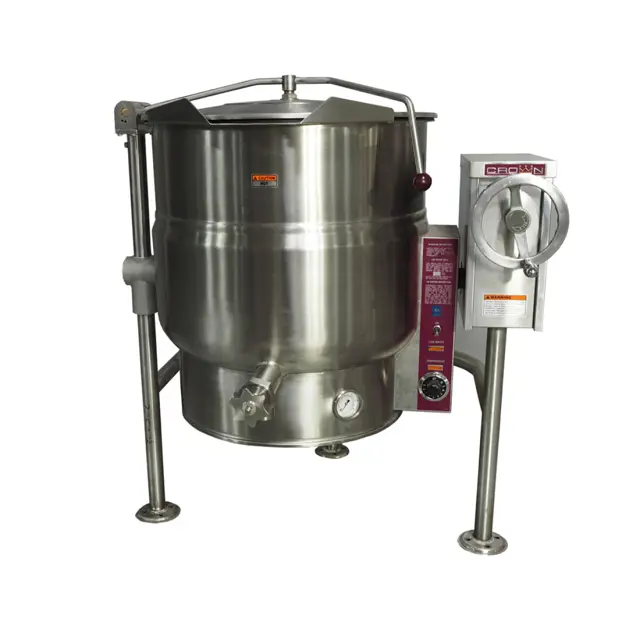

Crown Self-Generating Steam Jacketed Tilting Floor Mounted Kettle ELT-80

CAUTION: Do not use cleaning agents that are corrosive.

WARNING! Disconnect the power supply to the appliance before cleaning or servicing.

WARNING! Never spray water into electric controls or components!

CAUTION! The equipment and its parts are hot. Use care when operating, cleaning and servicing.

Rinse the inside of the kettle thoroughly and drain to remove any food particles.

Clean the kettle with a mild detergent and water using a nylon brush.

Rinse the inside of the kettle thoroughly with clean water. Drain the kettle.

Wipe the exterior of the kettle with a clean, damp cloth.

1. If equipped with a tangent draw-off valve, turn the large hex nut on the draw-off valve counterclockwise until it is completely disengaged from the threads. Grasp the valve knob and slowly pull out the valve stem. Wash the valve stem, disk and handle. Insert a nylon brush, wet with detergent and water, into the valve body and tangent draw-off tube. Brush vigorously.

2. Replace the valve stem assembly and turn the hex nut until snug. Rinse the kettle with clean warm water.

3. Leave the draw-off valve open when the kettle is not in use.;

Warning: Handle the plug with both hands due to its weight.

Remove the plug by first removing the handle, then turn the plug to line up with the pin and pull with both hands.

Put the plug in a plastic pail that contains a mild soap solution.

Use a soft cloth or soft brush and clean all surfaces.

Using both hands remove the valve from the soap and rinse well in another plastic pail that contains fresh water.

Once the kettle is washed out, return the plug into the body. Be sure the plug is inserted into the notch and turned.

Ensure the plug is tight and secure before letting go of it.

If you are cleaning a body and plug assembly, remove the plug and follow the above procedures.
