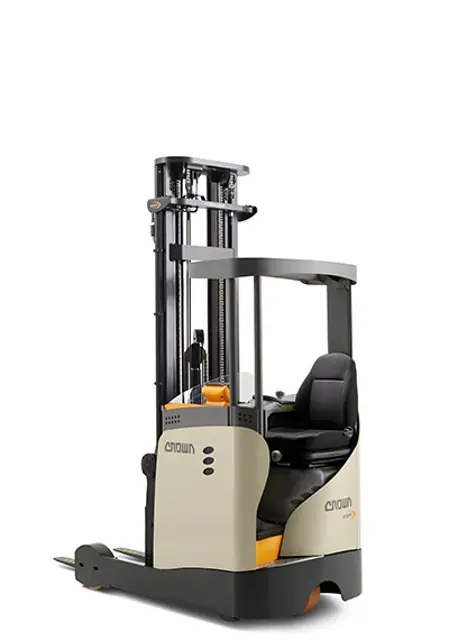

Crown Reach Truck ESR 5000-1.4

Warning: Avoid damaging the truck and power source charger. Make sure that the power source charger is plugged into the power source connector, not the truck connector.

Caution: Avoid damaging the power source. Do not operate trucks with lithium-ion batteries in freezing temperatures.

Is the charger plugged into the battery charge port?

Did you follow the charging instructions for the V-Force lithium-ion battery?

Did you opportunity charge during breaks or whenever the truck is not being used?

Is the charger unplugged from the battery charge port after charging is complete or the battery is fully charged?

Sign off on the V-Force Lithium-ion Battery Maintenance

Warning: If anything does not look, work, feel, or sound right, do not operate your truck. Report the problem to your supervisor.

Battery connector, battery terminals, and battery cables are not damaged

Battery compartment does not have spilled acid

Battery cable guide is installed

Vent caps are in place after checking the water level

Battery is secure and the battery retainers are in place

Lift chains and anchors are not damaged or corroded

Test drive in an uncongested area

Braking and plugging in forward and reverse at slow speed

Braking and plugging in forward and reverse at faster speed

Is the stopping distance acceptable?

All hydraulic functions working

Indicator or steering widget on the screen working

Warning: Lead acid batteries produce gas that can explode. Never smoke or use an open flame around batteries.

Unplugged the power source connector from the truck?

Follow the charging instructions from the power source manufacturer.

Unplugged the charger and plugged the power source connector into the truck?

Warning: Never let anything conductive like metal touch the top of the cells. Use an insulator such as plywood, when necessary.

Battery cells filled to the proper level?

Warning: Ventilate well when in an enclosed area and when charging.
