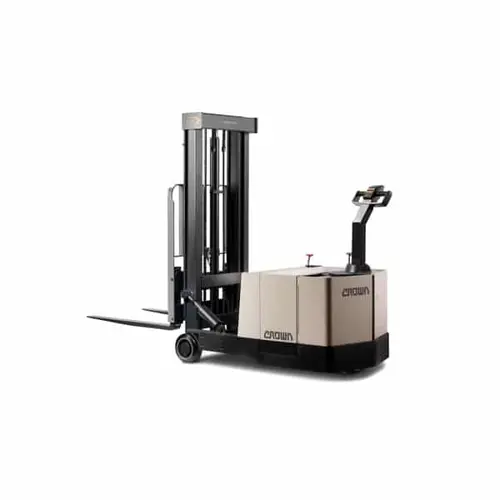

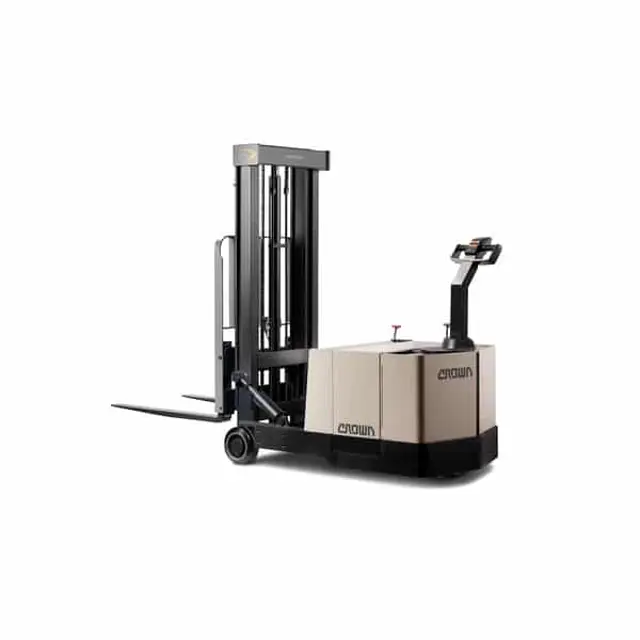

Crown Reach Stacker WRTT

Test drive your truck in an uncongested area

Drive the truck slowly in both directions

Drive through the full speed range in both forward and reverse

Check braking and plugging distances in forward and reverse. Load size and floor conditions can affect these distances

Know the distance it takes to stop before you start working. If the braking distance is too long to stop safely, don't drive the truck.

If anything doesn't look or feel right, don't drive the truck

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

Safety shield is clean and clear

Load backrest is in place and secure

- WHEN YOU INSTALL OR CHANGE A BATTERY:

• Turn the truck OFF. Check that all controls are in neutral

• Make certain you use the correct size and weight battery. Never operate a truck that has an underweight or undersized battery installed

• Use a roller stand to install or remove a battery. Make sure the roller stand is the same height as the rollers in the truck's battery compartment. Also make sure the roller stand is at least as long as your battery

• Never let anything metal touch the top of the cells. You could cause sparks or do damage to the battery. Use an insulator (such as plywood) when necessary

• Use an approved spreader bar to place a battery on, or remove it from a stand. Make sure you adjust the spreader bar hooks to fit the battery

- AFTER INSTALLING YOUR BATTERY:

• Replace the battery retainer. Make certain the retainers on both sides of the truck are in place

• Be sure the block #77034 is bolted to the back of the battery half of the connector
