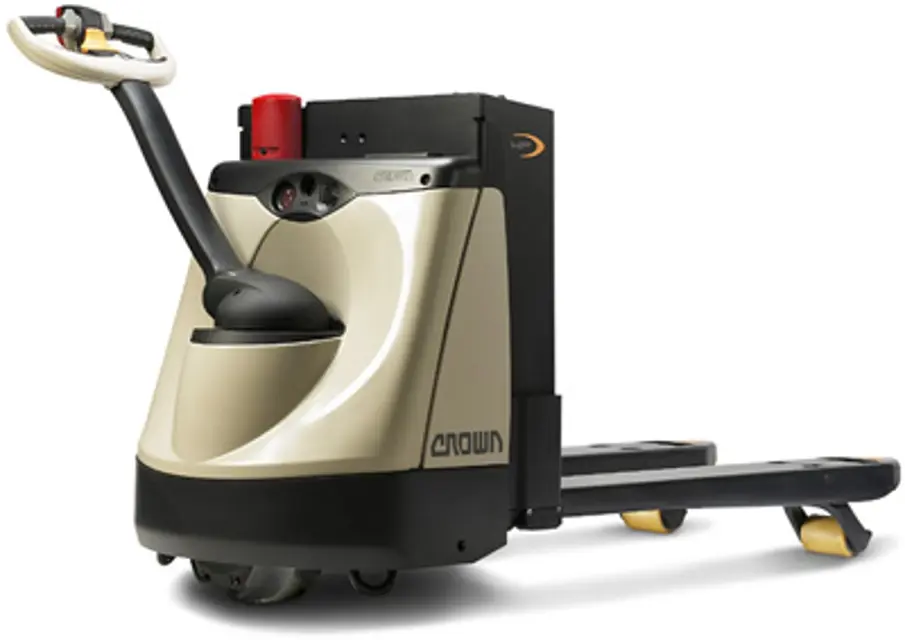

Crown Electric Pallet Jack WP2340-45

Sign off on the braking system maintenance

Check operation and grease flat coil springs for return function

Check brake lining and contact surfaces for wear, replace parts if necessary

Clean attachments of cylinder (bottom) and piston rods (top), check for wear, replace if necessary, grease

Clean bushings and striking surfaces check for wear, replace if necessary, grease

Clean, check for wear, replace if necessary, grease

Check electrolyte level and replenish if necessary

Check Battery Connector operation

Check lift/lower rocker switch operation

Check fast/slow travel switch operation

Check reverse safety switch operation

Clean Truck, battery and charger connectors/plugs contacts and check contact springs

Check Carbon brushes for wear, ease of motion and contamination

Check Pump and drive motor for wear, ease of motion and contamination

Check connecting rods for wear, ensure attachment is secure, tighten if necessary or replace connecting rods

Check forks height setting, adjust if necessary

Replace gear oil in gear unit at initial 250 Hour service

Replace suction and return filters in hydraulic system at initial 500 Hour service

Sign off on the 250 Hour / 3 Month Maintenance

Check commutator for damage and wear

Replenish gear oil if necessary

Check brake lining and contact surfaces for wear

Replace brake parts if necessary
