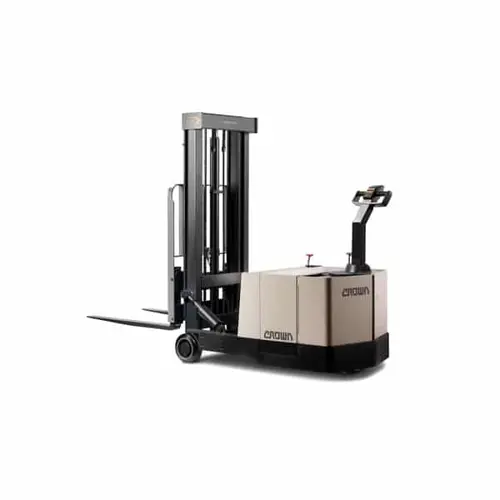

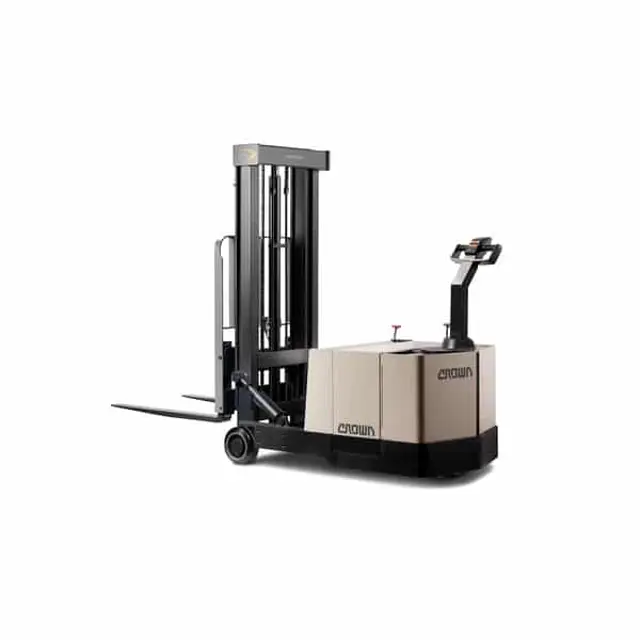

Crown Counterbalance Walkie Truck 25 WB 110
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Crown Counterbalance Walkie Truck 25 WB 110
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Crown Counterbalance Walkie Truck 25 WB 110
Create an account to install this asset package.
Maintenance Plans for Crown Counterbalance Walkie Truck Model 25 WB 110
Integrate maintenance plans directly into your work orders in MaintainX.
Battery Maintenance
Warning: Battery maintenance requires trained personnel with PPE!
Is the truck turned OFF and all controls in neutral?
Is the battery retainer removed?
Is the correct size and weight battery used?
Is the top of the cells free from any metal contact?
Is an insulator used when necessary?
Is an approved spreader bar used for battery placement?
If a roller stand is used, is it the same height as the rollers in the truck's battery compartment and at least as long as the battery?
Is the battery retainer replaced after installation?
1 Daily Truck Check
Before starting work, make sure your truck is safe to use.
Battery is charged
Water level is OK
Vent caps are in place
All wheels are in good condition
Twist grips are clean
Load backrest is in place and secure
No signs of hydraulic leaks under the truck
Horn is working
1 Daily Truck Test
Test drive in an uncongested area
Test the hydraulic functions
Check the steering
Operate the truck slowly in both directions
Operate through the full speed range in both forward and reverse
Braking distance in forward
Braking distance in reverse
If the braking distance is too long to stop safely, don't use the truck
Is everything working correctly?
Parts for Crown Counterbalance Walkie Truck 25 WB 110
Access the parts list for your equipment in MaintainX.
Safety Checklist
OF-3772
Battery Block
77034
Safety Checklist
OF-3772
Battery Block
77034
Safety Checklist
OF-3772
Battery Block
77034
