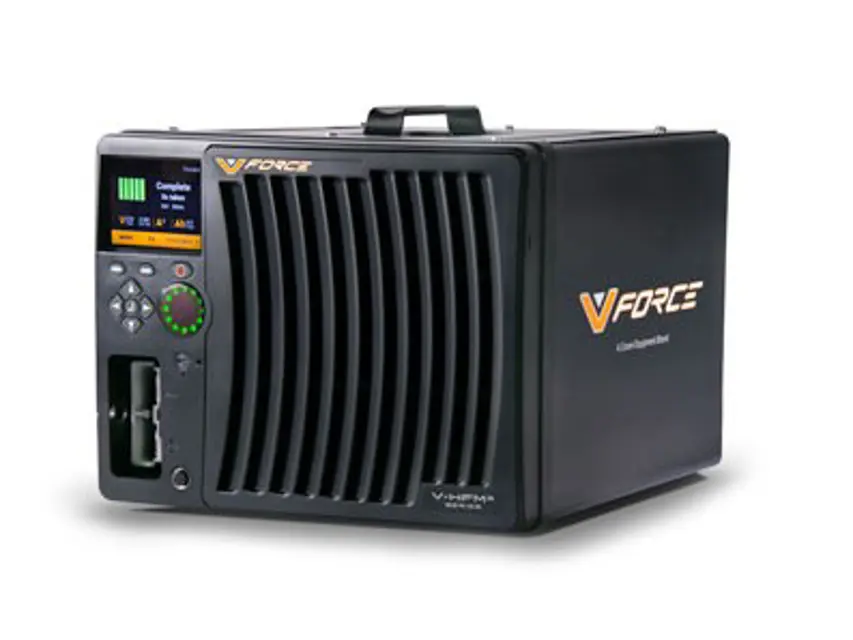

Crown Charger Module FS3-MP124-2

Warning: This service requires trained personnel with PPE!

Air inlet filter free from dirt build up?

Charger Modules' airflow monitoring functional?

Charger Modules' cooling air supply healthy?

Note: A blocked filter will affect the cooling ability, reduced airflow could lead to the Charger protecting itself by backing off the output power and eventually shutting down.

Power modules backed off due to over temperature?

Note: Having the power modules back off due to over temperature will cause longer charge times and the inability to charge the battery correctly, units operated with blocked filters for extended periods will result in premature failure of the Charger Module cooling fans.

Enter the location of the Charger

Enter the number of charge cycles performed

Warning: This procedure requires trained personnel with PPE!

Module taken to a suitable location for cleaning

Build-up brushed from the front grills without forcing it down into the fans

Length of the screw driver used to lock the fan impeller in place

Compressed air blower used to blow the dust through the module and out the back

Gentle air flow used to clean out the internal area of the module

Does the Charger Module have considerable dust build up?

Housing blown out if there was considerable dust build up

Charger Module not opened under any circumstance

Warning: This test requires trained personnel!

LCD displays the start-up screen

Display changes to Test Mode Disabled after holding down the 'Up' and 'Down' buttons for 10 seconds

Self-Test Disabled menu is accessible after pressing the 'Down' button

Double headed arrow appears after pressing the ENTER button

Self Test is enabled after pressing the 'Up' button and the ENTER button

In the Cancel/Store menu, 'Store' is selected after pressing the 'Down' button

Red Charging lamp is illuminated and the display reads Red Led Test after toggling the On/Off switch

Green Ready lamp is illuminated and the display reads Green Led Test

1. The filter material is an electrostatic polypropylene type that is easily cleaned with compressed air or in extreme situations washed with clean soapy water

2. Before attempting to clean the filter it is necessary to remove it from the housing and taken to an appropriate place to be cleaned

3. If it is washed it must be left to dry fully before being refitted to the charger, drawing moist or wet air into the Charger Modules could cause failure of the modules

Accordingly when the filter is inspected, the front air inlet grills of the Charger Modules should be inspected for excessive signs of dirt build up. Should the Charger modules be covered in dust they should be removed from the housing for close inspection of any external signs of damage or corrosion. If it is just a build-up of dry dust the Charger Module should be cleaned out;
