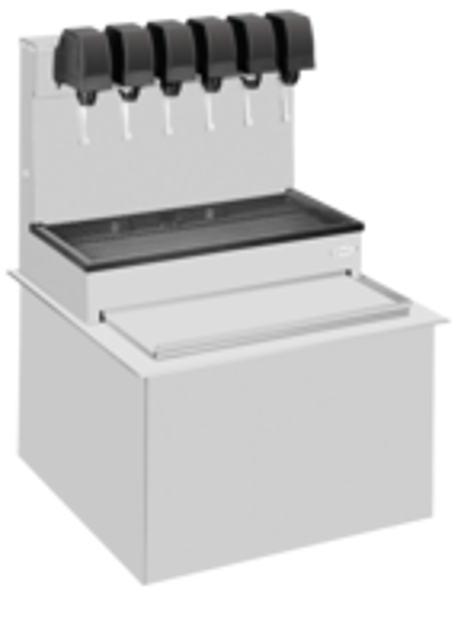

Cornelius Ice Cooled Dispenser CB1522 75 lbs

Clean around Carbonator tank opening removing all silicone, and make sure cavity is clean and dry

Place new Carbonator in place of the old one

Reconnect probe wire harness to pump and motor

Seal top of Carbonator with silicone

Connect the CO2 line from the barbed fitting Carbonator and tighten to 80+/- 10 in pounds (Note: replace white gasket)

Reconnect the Carbonator lines to the Carbonator

Reinstall valve body, back cover and front cover of the valve No. 8 to unit

Turn on the CO2 supply that is connected to the Carbonator

Turn on the water supply that is connected to the pump and motor

Upon delivery inspect the unit for damage or irregularities and immediately report problems to the delivering carrier and file a claim with that carrier.

Unit damaged or irregularities present?

Open loose parts packages and inspect parts.

Make sure all items are present.

Sign off on the dispenser inspection

Prepared a mild detergent soap solution in 100°F potable water

Cleaned the cold plate and the interior of the ice bin with the soap solution using a nylon (not wire) bristle brush

Rinsed the cold plate and interior bin surfaces with clean potable water

Prepared a sanitizing solution according to the manufacture’s directions and sprayed the entire interior bin surfaces

Sign off on the ice bin cleaning

Disconnect the power to the unit and to the pump and motor

Shut off the CO2 supply that is connected to the Carbonator

Shut off the water supply that is connected to the pump and motor

Remove Cup Rest, Splash Panel, Drip Tray, Sliding Lid and Sanitary Plate

Relieve pressure in the system by flipping the pressure relief valve to the up position on the Carbonator

Remove front cover, back cover and valve body of No. 8 (left side)

Remove the plug button on the left side of tower and cover hole with tape (safety)

Disconnect the barb fitting for the CO2 line on Carbonator
