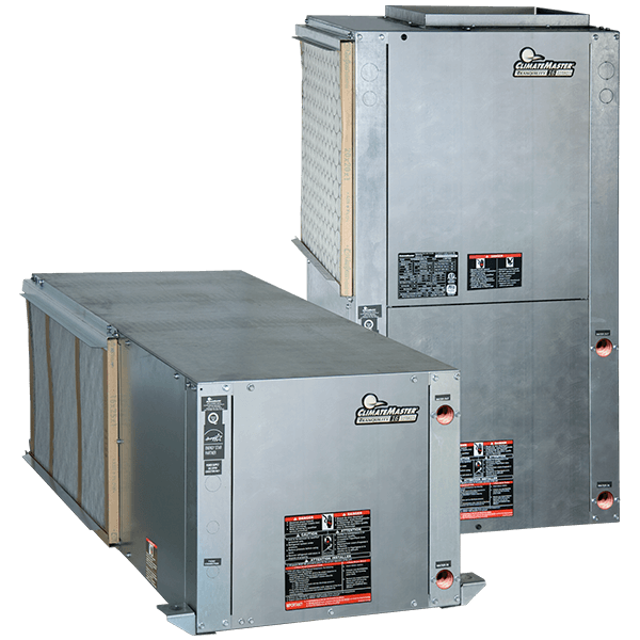

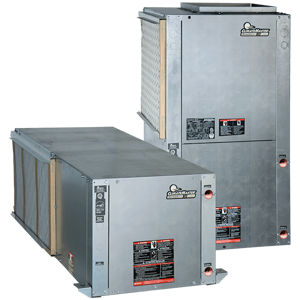

Climate Master Heat Pump TCH012AGC30APBS

Warning: Only trained personnel should perform this check

Fan motor dry operation suspected?

If dry operation is suspected, report to the maintenance team immediately

Enter the amp draw from the serial plate data

Is amp draw no more than 10% greater than indicated on serial plate data?

Sign off on the fan motors dry operation and amperage check

Warning: Do not allow water to stay in contact with the cabinet for long periods of time to prevent corrosion of the cabinet sheet metal.

Is the cabinet set up from the floor a few inches [7 - 8 cm] to prevent water from entering the cabinet?

Is the cabinet cleaned using a mild detergent?

Sign off on the cabinet cleaning

CAUTION! DO NOT use “Stop Leak” or similar chemical agent in this system. Addition of chemicals of this type to the loop water will foul the heat exchanger and inhibit unit operation.

NOTE: The manufacturer strongly recommends all piping connections, both internal and external to the unit, be pressure tested by an appropriate method prior to any finishing of the interior space or before access to all connections is limited. Test pressure may not exceed the maximum allowable pressure for the unit and all components within the water system.

The manufacturer will not be responsible or liable for damages from water leaks due to inadequate or lack of a pressurized leak test, or damages caused by exceeding the maximum pressure rating during installation.

Ensure that electrical power to the unit is disconnected.

Install the system with the supply hose connected directly to the return riser valve. Use a single length of flexible hose.

Open all air vents. Fill the system with water. DO NOT allow system to overflow. Bleed all air from the system. Pressurize and check the system for leaks and repair as appropriate.

Verify that all strainers are in place (ClimateMaster recommends a strainer with a #20 stainless steel wire mesh). Start the pumps, and systematically check each vent to ensure that all air is bled from the system.

Verify that make-up water is available. Adjust makeup water as required to replace the air which was bled from the system. Check and adjust the water/air level in the expansion tank.

Set the boiler to raise the loop temperature to approximately 85°F [29°C]. Open a drain at the lowest point in the system. Adjust the make-up water replacement rate to equal the rate of bleed.

Upon receipt of the equipment, carefully check the shipment against the bill of lading.

Packaging of each unit inspected

Ensure that the carrier makes proper notation of any shortages or damage on all copies of the freight bill and completes a common carrier inspection report.

Concealed damage not discovered during unloading must be reported to the carrier within 15 days of receipt of shipment. If not filed within 15 days, the freight company can deny the claim without recourse.

NOTE: It is the responsibility of the purchaser to file all necessary claims with the carrier. Notify your equipment supplier of all damage within fifteen (15) days of shipment.

Sign off on the initial equipment inspection

CAUTION: Fin edges are sharp. Handle with care.

Check the air coil for dirt. If dirty, proceed to next step.

Brush or vacuum clean the air coil. Be careful not to damage the aluminum fins.

Sign off on the air coil cleaning
