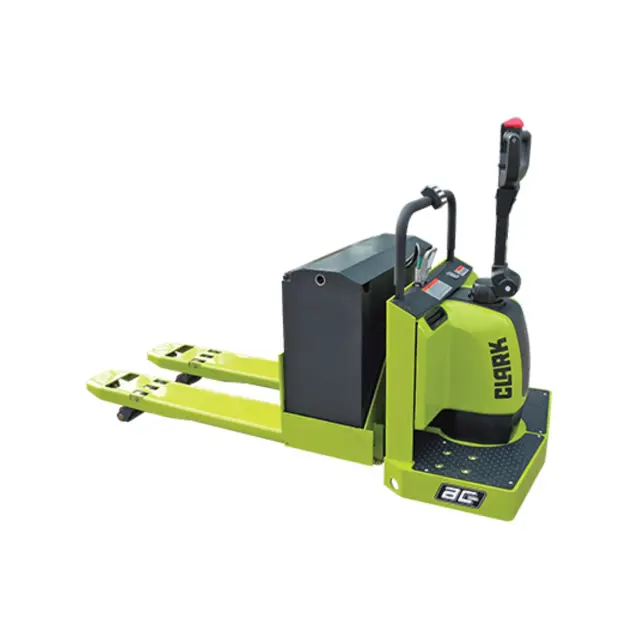

Clark Clark Electric Pallet Jack Forklift HPC60 HPC60

Lubricate Load Wheel Axle, Use Lube Gun & Adapter for Flush Type Fittings ( Tex. Ref. C&C #880)

Remove, Clean, & Replace Oil (SAE- 40W Motor Oil) in Wheel Fork Pin Bearings

Remove, Clean, & Replace Oil (SAE- 40W Motor Oil) in Pull Rod Pin Bearings

Remove, Clean, & Replace Oil (SAE- 40W Motor Oil) in Cylinder Rod Pin Bearings

Remove, Clean, & Replace Oil (SAE- 40W Motor Oil) in Steer Handle Bearings

Lubricate Frame Casters. Use Std Lube Gun (Tex. Ref C&C #880)

Every 250 Hours Replace Hydraulic Filter

Sign off on the forklift lubrication

Warning: This procedure requires trained personnel with PPE!

Drain, Flush and Refill completed?

Were there dust or moisture operating conditions?

Sign off on the oil replacement

1. Drain, Flush, & Refill Hydraulic Reservoir. Use SAE- 40 W Motor Oil.

* Fill to 1" below the opening with forks fully.

2. Clean in Solvent Hydraulic Reservoir Inlet Screen Inside of Reservoir.

Inspect for loose or missing parts. Tighten or replace as required

Service drive and pump motors (see manufacturer's instructions)

Lubricate steer handle bearings (see lubrication chart)

Charge, service, and clean battery

Inspect visually for damage or leakage

Inspect visually for loose or missing parts

Inspect visually for foreign material in the fork mechanism

Check electrical interlock (brake switch) operation

Check for smooth and proper functioning of all controls
