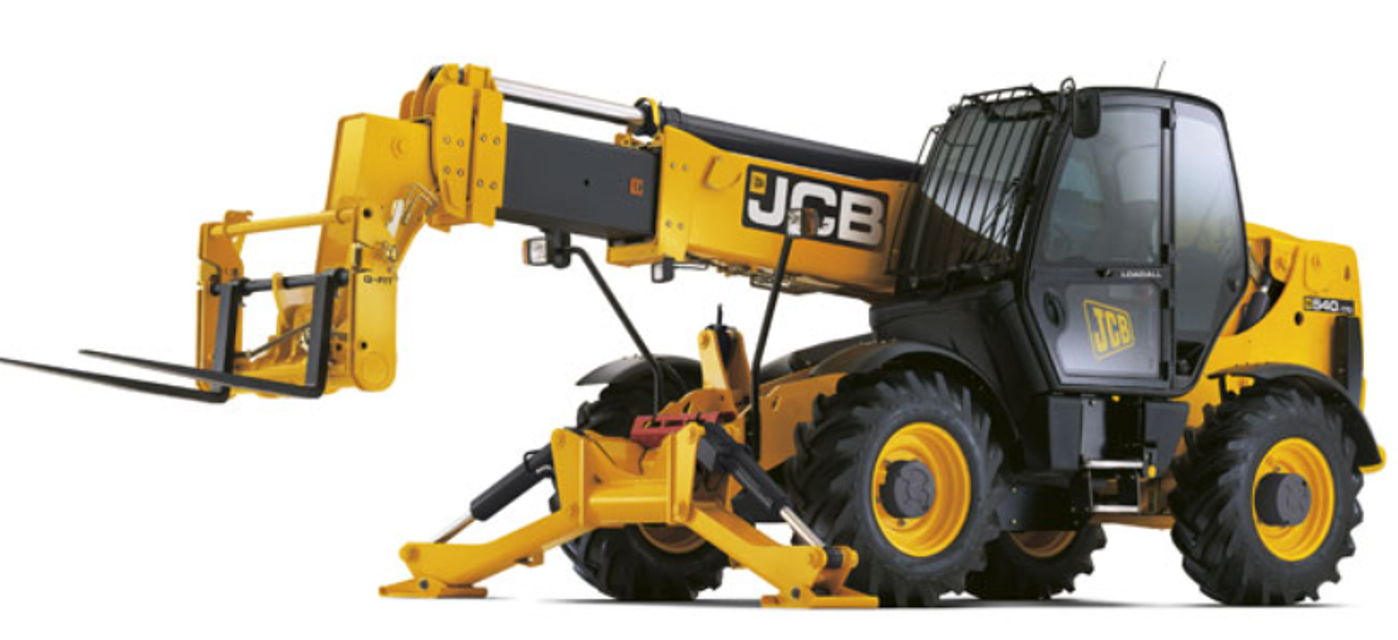

JCB Telehandler 540-170

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

The JCB Telehandler 540-170 is a versatile industrial equipment designed for lifting and moving materials in various construction and agricultural applications. Known for its robust performance and reliability, this telehandler model offers exceptional maneuverability and efficiency, making it an essential asset for any job site.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for JCB Telehandler 540-170

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

JCB Telehandler 540-170

Create an account to install this asset package.

Maintenance Plans for JCB Telehandler Model 540-170

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly or 6 Monthly Telehandler Maintenance

Coolant Quality and Level Check

Engine Oil and Filter(2)(3)(4) Change

Air Cleaner Dust Valve(5) Clean

Water Separator Check for contamination and Drain

Water Separator Fuel Filter(8) Change

Front End Accessory Drive (FEAD) Belt Condition Check

Powertrain Mounting Bolts for Tightness Check

All Hoses - Condition Check

Radiator(5) Clean

Run this procedure

10 Hourly or 1 Daily Telehandler Maintenance

Coolant Quality and Level Check

Engine Oil level Check

Transmission Oil Level Check

Wheel Nut Security Check

Tyre Pressures/Condition Check

Wheel Alignment Check

Brake System Fluid Level(14) Check

Fire Extinguisher (if fitted) Check

Wing Mirrors Condition and Security Check

Run this procedure

1000 Hourly or 1 Yearly Telehandler Maintenance

Coolant Quality and Level Check

Engine Oil and Filter(2)(3)(4) Change

Air Cleaner Dust Valve(5) Clean

Air Cleaner Outer Element(5) Change

Water Separator Check for contamination and Drain

Water Separator Fuel Filter(8) Change

Engine Fuel Filter(5) Change

Front End Accessory Drive (FEAD) Belt Condition Check

Powertrain Mounting Bolts for Tightness Check

Run this procedure

50 Hourly or 1 Weekly Telehandler Maintenance

Coolant Quality and Level Check

Engine Oil level Check

Water Separator Check for contamination and Drain

Transmission Oil Level Check

Axle(s) Oil Level Check

Wheel Nut Security Check

Tyre Pressures/Condition Check

Wheel Alignment Check

Axle Pivots and Linkages(10) Grease

Run this procedure

8000 Hourly or 8 Yearly Telehandler Maintenance

Cooling System Drain and Refill

Engine Oil and Filter(2)(3)(4) Change

Air Cleaner Dust Valve(5) Clean

Air Cleaner Outer Element(5) Change

Air Cleaner Inner Element Change

Water Separator Check for contamination and Drain

Water Separator Fuel Filter(8) Change

Engine Fuel Filter(5) Change

Front End Accessory Drive (FEAD) Belt Condition Check

Run this procedure

Parts for JCB Telehandler 540-170

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

JCB Special MPL-EP Grease(11)

4003/1501

JCB Gear Oil HP Plus

4000/2205

JCB Cold Climate Engine Oil EP5W40 -20C to +50C (-4°F to 122°F)

4001/2705

JCB Gear Oil LS Plus

4000/3905

JCB Antifreeze HP/Coolant + Water (Refer to Coolant Mixtures)

4006/1120

JCB Special MPL-EP Grease(11)

4003/1501

JCB Gear Oil HP Plus

4000/2205

JCB Cold Climate Engine Oil EP5W40 -20C to +50C (-4°F to 122°F)

4001/2705

JCB Gear Oil LS Plus

4000/3905

JCB Antifreeze HP/Coolant + Water (Refer to Coolant Mixtures)

4006/1120

JCB Special MPL-EP Grease(11)

4003/1501

JCB Gear Oil HP Plus

4000/2205

JCB Cold Climate Engine Oil EP5W40 -20C to +50C (-4°F to 122°F)

4001/2705

JCB Gear Oil LS Plus

4000/3905

JCB Antifreeze HP/Coolant + Water (Refer to Coolant Mixtures)

4006/1120
