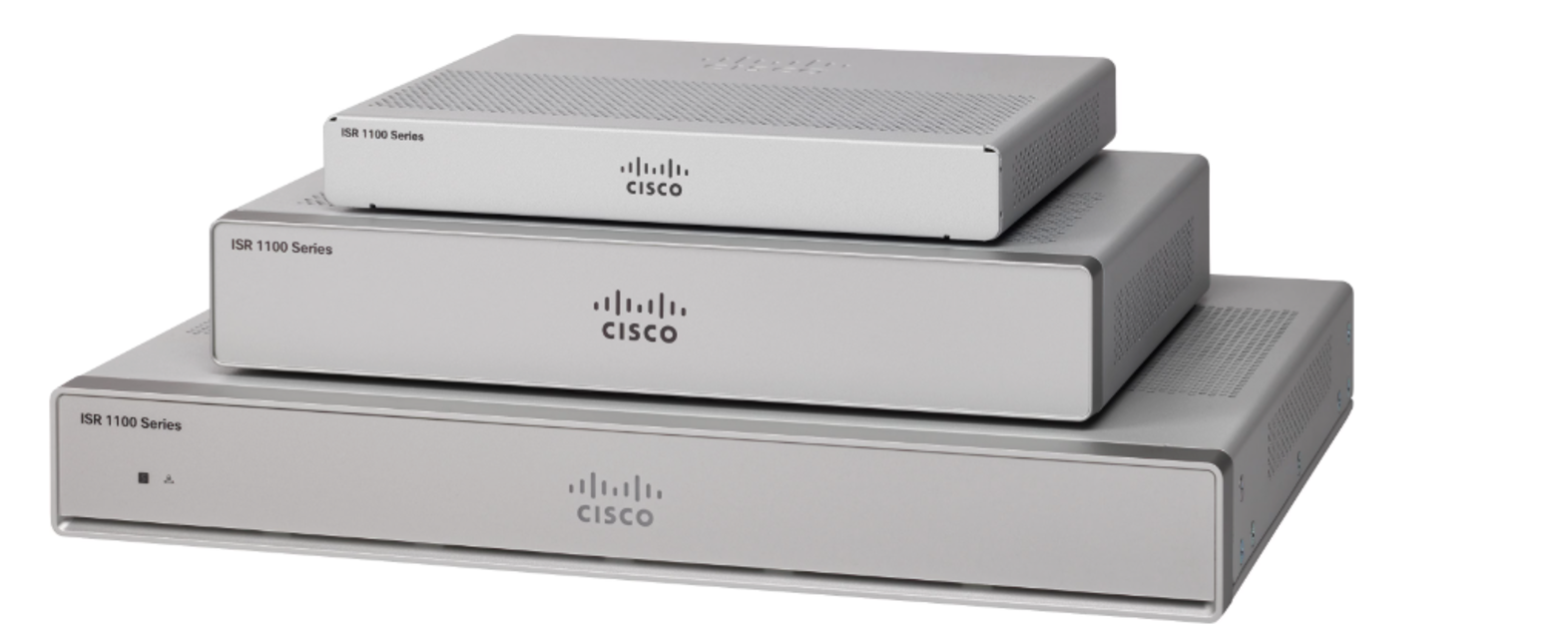

Cisco Integrated Service Router C1109-4PLTE2P

Create an account to install this asset package.

Maintenance Plans for Cisco Integrated Service Router Model C1109-4PLTE2P

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly Router External Surface Cleaning

Inspection and Preparation

Inspect the router for dust and debris accumulation

Is the ambient temperature consistently above 25°C or 77°F?

Cleaning Procedure

Vacuum the router air intake vents

Vacuum the router exhaust vents

Post-Cleaning Check

Ensure all vents are clear of dust and debris

Is additional cleaning required due to high dust levels?

Run this procedure

Cover Replacement

Remove the Cover

Read the Safety Warnings and disconnect the power supply before performing any module replacement.

Confirm the router is turned off and disconnected from the power supply.

Disconnect all port cables connected to the router.

Installer to disconnect all cables connected to the system.

Place the chassis on a flat surface.

Remove the 14x cover screws on the two sides of the router cover.

Slide the cover from bezel side to I/O side until it stops.

Pull the cover vertically to disengage from the chassis.

Run this procedure

Parts for Cisco Integrated Service Router C1109-4PLTE2P

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

AC Power Adapter Input 100–240V, Output 12VDC 5.5A

PWR-66W-AC-V2

AC Power Adapter Input 100–240VAC 2A 50–60Hz, Output 12V 4.6A, -53.5V 1.12A

PWR-115W-AC

AC Power Adapter Input 100–240VAC 1A, Output 12V 2.5A

PWR-30W-AC

AC Power Adapter Input 100–240VAC 2A, Output 12V 5.5A, -53.5V 1.5A

PWR-150W-AC

DC Power Adapter 24V DC nominal input, Output 12VDC 5.5A

PWR-66W-I-DC

AC Power Adapter Input 100–240V, Output 12VDC 5.5A

PWR-66W-AC-V2

AC Power Adapter Input 100–240VAC 2A 50–60Hz, Output 12V 4.6A, -53.5V 1.12A

PWR-115W-AC

AC Power Adapter Input 100–240VAC 1A, Output 12V 2.5A

PWR-30W-AC

AC Power Adapter Input 100–240VAC 2A, Output 12V 5.5A, -53.5V 1.5A

PWR-150W-AC

DC Power Adapter 24V DC nominal input, Output 12VDC 5.5A

PWR-66W-I-DC

AC Power Adapter Input 100–240V, Output 12VDC 5.5A

PWR-66W-AC-V2

AC Power Adapter Input 100–240VAC 2A 50–60Hz, Output 12V 4.6A, -53.5V 1.12A

PWR-115W-AC

AC Power Adapter Input 100–240VAC 1A, Output 12V 2.5A

PWR-30W-AC

AC Power Adapter Input 100–240VAC 2A, Output 12V 5.5A, -53.5V 1.5A

PWR-150W-AC

DC Power Adapter 24V DC nominal input, Output 12VDC 5.5A

PWR-66W-I-DC
