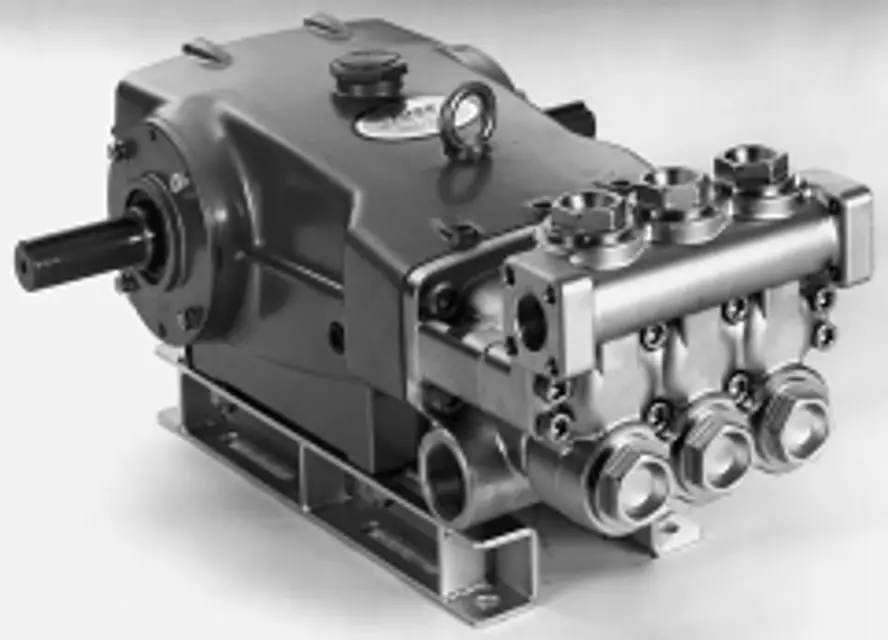

CAT Plunger pump 3520

Each system's maintenance cycle will be exclusive. If system performance decreases, check immediately. If no wear at 1500 hours, check again at 2000 hours and each 500 hours until wear is observed. Valves typically require changing every other seal change. Duty cycle, temperature, quality of pumped liquid and inlet feed conditions all effect the life of pump wear parts and service cycle.

Remember to service the regulator/unloader at each seal servicing and check all system accessories and connections before resuming operation.

Enter the current operating hours of the pump

Sign off on the plunger pump check

Each system's maintenance cycle will be exclusive. If system performance decreases, check immediately. If no wear at 1500 hours, check again at 2000 hours and each 500 hours until wear is observed. Valves typically require changing every other seal change. Duty cycle, temperature, quality of pumped liquid and inlet feed conditions all effect the life of pump wear parts and service cycle.

Check for wear at 2000 hours and each 500 hours until wear is observed

Change valves every other seal change

Service the regulator/unloader at each seal servicing

Check all system accessories and connections before resuming operation

Sign off on the plunger pump check

Clean Filters. Use adequate mesh size for liquid and pump specifications.

Fill crankcase with special CAT PUMP oil per pump specifications (4.2 Qts. - 4.0 L)

Check if pump is running without oil in crankcase

Change initial fill after 50 hours running period

Thereafter, change oil every 3 months or 500 hour intervals

Oiler adjustment is vertical to start feed, horizontal to stop feed, dial to adjust _x001e_flow rate

Additional lubrication may be required with increased hours of operation and temperature

Pump was designed for forward rotation to allow optimum lubrication of the crosshead area
