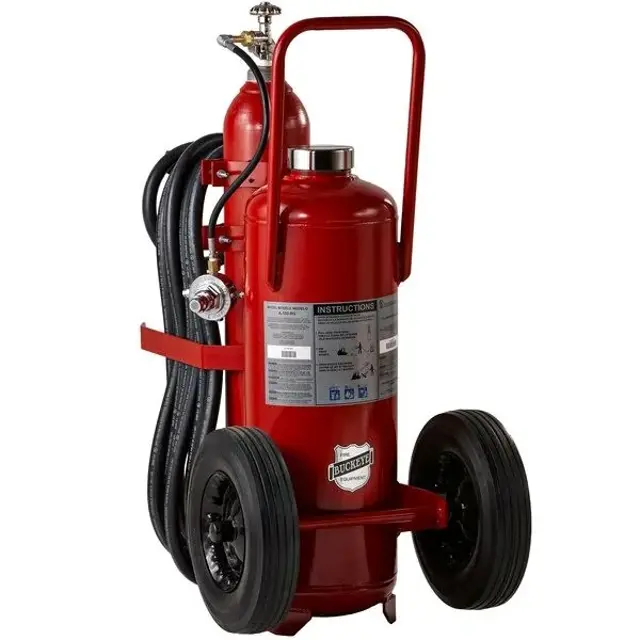

Buckeye Wheeled Fire Extinguisher K-150RG W/16” Wheels

Preparation and Safety Precautions

Ensure the extinguisher is upright and in a suitable area for maintenance.

Verify the extinguisher has been blown down and all pressure is relieved.

Install safety shipping cap on nitrogen cylinders if removed.

Examine the overall condition of the extinguisher for mechanical damage or corrosion.

Check the extinguisher’s nameplate for legibility and secure fastening.

Hydrostatic Retest Verification

Is a 12-year hydrostatic retest required for the agent cylinder?

Ensure extinguisher has been blown down and all pressure relieved from the agent cylinder and hose assembly.

Verify nitrogen cylinder valve is not accidentally pulled, especially if it is a 'quick-release' type.

Locate the extinguisher in a dry area.

Follow the appropriate model extinguisher maintenance procedures.

Select the model of the extinguisher

Enter the amount of Buckeye Fire Equipment dry chemical agent filled (lbs)

Ensure the extinguisher is in its designated place and easily mobilized.

Ensure there are no obstructions preventing visual location or access to the extinguisher.

Ensure the operating instructions on the nameplate are legible and facing outward.

Check that the visual inspection lead wire safety seals are intact.

Examine the unit for missing/loose parts, physical damage, corrosion, or leakage.

Inspect the discharge nozzle for obstructions and ensure the operating handle is in the closed position.

Inspect for mechanical injury, damage, or corrosion

Is there evidence of mechanical injury, damage, or corrosion?

Remove agent cylinder safety relief, siphon tube, and gas tube

Ensure extinguisher fill cap is used and remains on the cylinder during testing

Record hydrostatic retest pressure for agent cylinders

Was the agent cylinder tested at 480 PSI?
