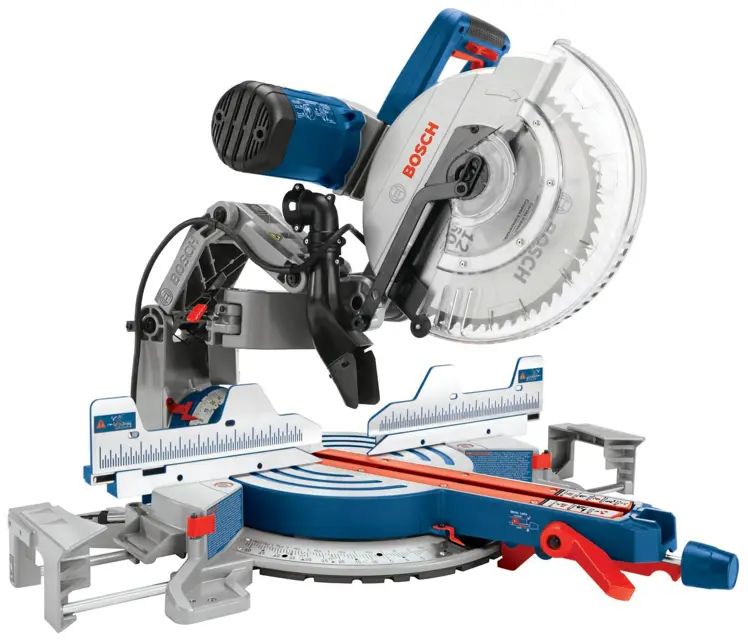

Bosch Slide Mitre Saw GCM12SD

Warning: The brush cap is spring-loaded by the brush assembly.

Remove the brush cap on the motor using a wide, flat-blade screwdriver

Pull out the brush. Repeat for the opposite side

NOTE: If installing the existing brush or brushes, make sure the brush goes in the same way it came out. Otherwise, a break-in period will occur that will reduce motor performance and increase brush wear.

Inspect brushes for wear. On the wide, flat side of brush is a wear limit line. If the brush contactface is at or beyond (no line visible) the limit, replace brushes as a set.

Install new brush. The two tabs on the brush terminal go in the same hole the carbon part fits into.

Tighten the brush cap but do not overtighten.

Sign off on the motor brushes inspection

Warning: Preventive maintenance performed by unauthorized personnel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station.

Drive belt shows signs of excessive wear

Ventilation system around the belt is free of dust and debris

Drive belt replacement indicators

Important: Belt replacement should only be performed by an authorized service center to ensure proper installation and tool safety.

Always disconnect the tool from the power supply before cleaning or performing any maintenance.

Drive belt and surrounding area is clean

Drive belt shows signs of damage

Do not attempt to replace the drive belt yourself, as it requires special tools. Take the tool to an authorized Bosch service center for drive belt replacement.
