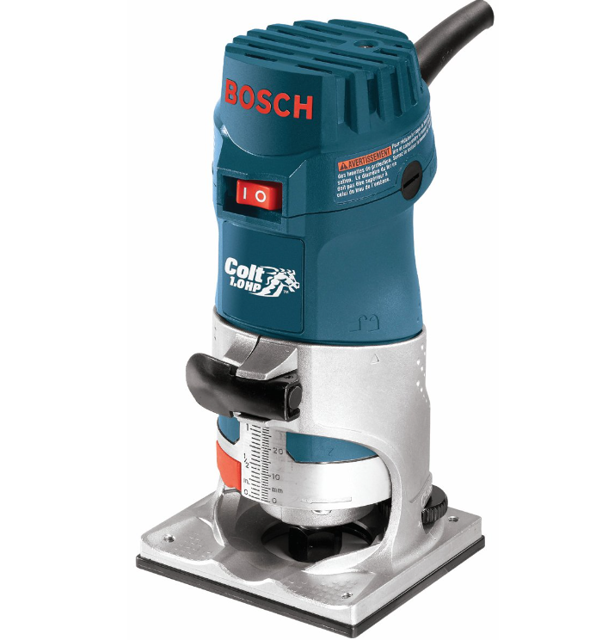

Bosch Router PR10E

Remove collet from motor and install toothed drive pulley using collet wrench. Make sure that drive gear is fully tightened onto the motor’s spindle.

The motor is then installed into the base according to the instructions on page 9.

Insert screwdriver (not included) through the U-shaped opening in the subbase to fit belt over drive pulley.

Upload a photo of the installed motor

Sign off on the motor installation

Warning: Ensure the router is unplugged before starting the adjustment process.

Loosen the screw using a Phillips screwdriver.

Rotate the knurled knob on the back of the guide to adjust the roller/bushing.

Enter the distance between the bit and the top of the roller/bushing guide.

Tighten the clamping screw using a Phillips screwdriver.

Make a trial cut to check the setting.

Enter any issues found during the trial cut.

Sign off on the adjustment of the roller/bushing guide.

Warning: To avoid accidents always disconnect the tool from the power supply before cleaning or performing any maintenance.

The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.

Ventilation openings and switch levers are clean and free of foreign matter.

Do not attempt to clean by inserting pointed objects through openings.

Caution: Certain cleaning agents and solvents damage plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Did you use any of the harmful cleaning agents?

Sign off on the router cleaning

Turn the motor so that the single triangle on the base lines up with “unlocked” symbol on the motor

Pull the motor away from base until it stops

Turn motor counterclockwise until it stops

Insert bit to the desired depth as per the instructions on page 9.

Press large red spindle lock button on top of offset spindle (Fig. 27).

Tighten collet nut using the same collet wrench as is used on the motor’s own collet nut. (The collet used on the PR004 is the same type of self-releasing collet used on the motor itself when used with the other bases.)

Make a trial cut to check the depth and readjust as necessary.

Sign off on the bit installation
